Item group

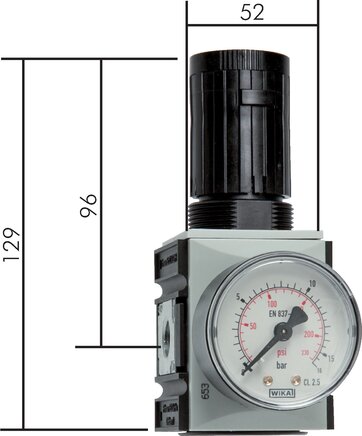

Pressure regulators & precision pressure regulators - Futura model series 1, up to 2500 l/min
Version:
Self-relieving pressure regulator
Materials:
Body: PA 66 GF60, spring hood: POM, diaphragms and seals: NBR
Temperature range:
-10 to +50 °C
Input pressure:
Max. 16 bar (model series 0: max 12 bar)
Pressure gauge connection:
G 1/4" (model series 0: G 1/8")
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series,
•Hand wheel can be locked by pressing down on it and bolted with a lock - please use VHS 20. Model series 0 cannot be locked.
•Easy assembly of individual components using coupling kits within a model series,
•Hand wheel can be locked by pressing down on it and bolted with a lock - please use VHS 20. Model series 0 cannot be locked.
Switch panel thread:
M 36x1,5
Scope of delivery:
Pressure regulator incl. 50 mm pressure gauge
Flow:
G 1/4": 2000 l/min, G 3/8": 2500 l/min, secondary vent: 70 l/min (precision pressure regulator 120 l/min)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Optional:
Safety version:with upstream lockable ball valve and filler valve -Si
*Standard series, please prefer for use, since the pressure control range is universally usable, **low own air consumption (2.6 l/min at 6 bar outlet pressure) but better hysteresis - almost independent of the primary pressure, control accuracy ± 25 mbar
Documents:
More information
Pressure regulators & precision pressure regulators - Futura model series 1, up to 2500 l/min:
20 of 32 articles
€58.64
incl. VAT
€58.64
incl. VAT
€58.64
incl. VAT
€58.64
incl. VAT
€58.64
incl. VAT
€58.64
incl. VAT
€58.64
incl. VAT
€58.64
incl. VAT
€58.64
incl. VAT
€58.64
incl. VAT
€58.64
incl. VAT
€58.64
incl. VAT
€80.94
incl. VAT
€80.94
incl. VAT
€80.94
incl. VAT
€80.94
incl. VAT
€80.94
incl. VAT
€80.94
incl. VAT
€80.94
incl. VAT
€80.94
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
