Item group

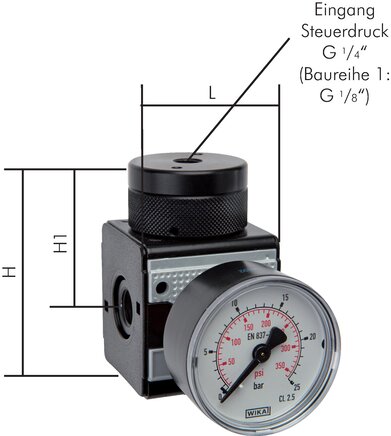

Pressure regulators, remote controlled (volume booster) - Multifix, up to 17,500 l/min*

Version:

Self-relieving pressure regulator

Materials:

Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR

Temperature range:

-10 to +60 °C

Pressure gauge connection (does not apply to pressure regulators with continuous pressure supply):

G 1/4" (model series 0: G 1/8")

Media:

Oiled and unoiled compressed air, neutral gasses

Advantages:

•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it

Application:

The remote controlled pressure regulator is used if the pressure regulator has to be used at inaccessible locations (e.g. in hazardous or ceiling areas). The setting is made using a pilot pressure regulator that can be placed anywhere. The regulated pressure corresponds to the pressure of the remote controlled bore.

Materials:

Body: die-cast zinc Z410 (model series 5: aluminium), top cover: brass, diaphragms and seals: NBR

Scope of delivery:

Pressure regulator incl. 50 mm pressure gauge

Own air consumption:

Multifix 1 & 2: none, Multifix 4: max. 1.5 l/min, Multifix 5: max. 0.5 l/min

ATEX:

Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)

Advantages:

•Remote pressure control by a pilot regulator (when using a precision regulator with feedback connection as pilot, a very precise pressure setting is possible)
*measured at P1 = 10 bar, P2 = 6.3 bar and 1 bar pressure drop

Documents:

More information Less information

Filter items

Model series
Please select
Thread
Please select
Flow* [l/min]
Please select
H [mm]
Please select
more filters
Pressure regulators, remote controlled (volume booster) - Multifix, up to 17,500 l/min*:
7 of 7 articles
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
