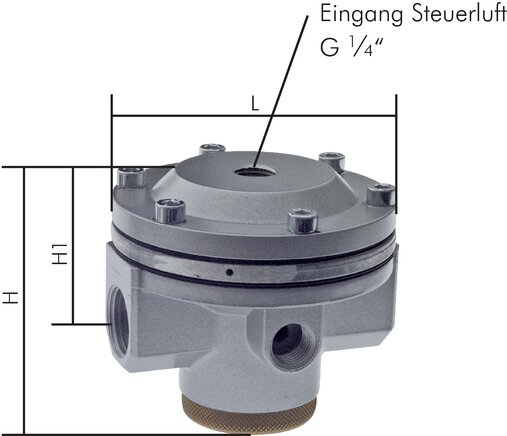

Pressure regulators, remote controlled (volume booster) - Standard, up to 50,000 l/min*

A remote controlled pressure regulator is used, when high flow rates are required with a constant pressure. The pressure regulator can also be used at inaccessible locations (e.g. in hazardous or ceiling areas). The setting is made using a pilot pressure regulator that can be placed anywhere. The regulated pressure corresponds to the pressure of the remote controlled bore.

Self-relieving pressure regulator

Body: die-cast zinc Z410 (model series 5 to 8: aluminium), diaphragms and seals: NBR

-10 to +80 °C

G 1/4"

Compressed air, neutral gases

Pressure regulator without pressure gauge

Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU

•Automatic venting in the event of overpressure on the secondary side,
•High flow at constant pressure,
•Remote-controlled pressure regulation using a pilot regulator (when using a precision pressure regulator as a pilot, it is possible to set the pressure very accurately)

For best regulation results, please use the precision pressure regulator with feedback connection Type DRF 31-7 FB / DRF 31-16 FB
