Item group

Pressure regulators with continuous pressure supply - Futura model series 1, up to 2500 l/min

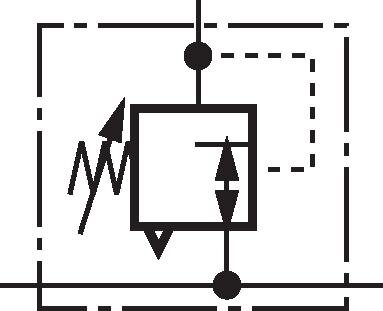

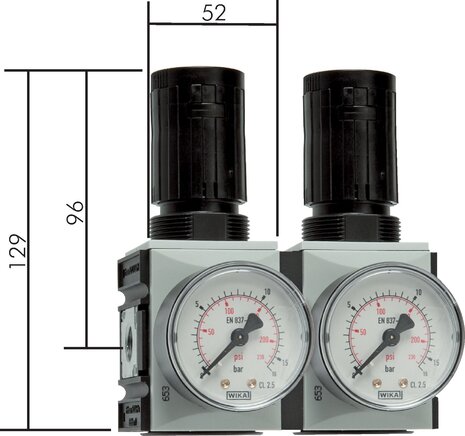

Exemplary representation: Druckregler mit durchgängiger Druckversorgung - Futura-Baureihe 1 & 2 Schematic symbol Schematic symbol

Version:

Self-relieving pressure regulator

Materials:

Body: PA 66 GF60, spring hood: POM, diaphragms and seals: NBR

Temperature range:

-10°C to +50°C

Input pressure:

Max. 16 bar (model series 0: max 12 bar)

Pressure gauge connection:

G 1/4" (model series 0: G 1/8")

Media:

Oiled and unoiled compressed air, neutral gasses

Advantages:

•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series,
•Hand wheel can be locked by pressing down on it and bolted with a lock - please use VHS 20. Model series 0 cannot be locked.

Switch panel thread:

M 36x1,5

Scope of delivery:

Pressure regulator including 40 mm pressure gauge

Flow:

G 1/4": 2000 l/min, G 3/8": 2500 l/min, secondary vent: 70 l/min, (precision pressure regulator 120 l/min)

ATEX:

Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU

Advantages:

•by combining several regulators in a block, one compressed air supply can supply several compressed air circuits with independently controllable pressures. The compressed air outlet (G 1/4") is located opposite the pressure gauge.
*Standard series, please prefer for use, since the pressure control range is universally usable, **low own air consumption (2.6 l/min at 6 bar outlet pressure) but better hysteresis - almost independent of the primary pressure, control accuracy ± 25 mbar

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 563) atlas9_seiten/563.pdf
    Documentation doku/futura.pdf
    Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
    Air units and safety at the workplace!
    Pressure regulator - Standard vs. Precision!
