Item group

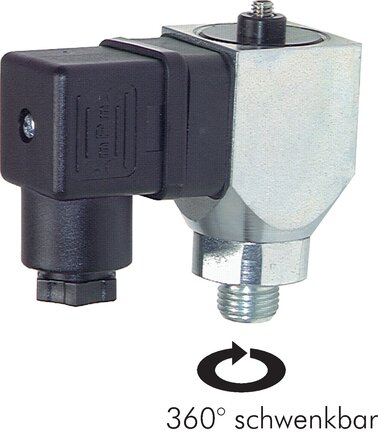

Pressure switch - can be swivelled, up to 200 bar

Materials:

Bodies: Zinc plated steel (Vacuum switch: Aluminium), diaphragm**: NBR

Temperature range:

-25 to +85 °C

Switch-back difference (hysteresis)

15 to 25 % of the value that has been set

Protection class:

IP 65

Electrical connection:

Right-angle connector, size 3, 4-pin (DIN 43650 / EN 175301-803 A) (Flat pin)

Switch type:

Changer

Media:

Hydraulic oil, oil emulsion, air, partially suitable for water
*for 30 V DC, **settings range >= 70 bar controller using pistons, seal: UR

Documents:

More information Less information

Filter items

exécution
Please select
Plage de réglage [bar]
Please select
Matériau
Please select
Sécurité anti-surpression jusqu'à [bar]
Please select
Pressure switch - can be swivelled, up to 200 bar:
5 of 5 articles
Vacuum switch, Aluminium -0,98 to -0,2 bar, G 1/4"(VAKUSW 14 B)
VAKUSW 14 B
Vacuum switch, Aluminium -0,98 to -0,2 bar, G 1/4"
€91.89 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 0,3 to 2 bar, G 1/4"(DRSD 2 B)
DRSD 2 B
Pressure switch, Zinc plated steel 0,3 to 2 bar, G 1/4"
€80.67 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 1 to 10 bar, G 1/4"(DRSD 10 B)
DRSD 10 B
Pressure switch, Zinc plated steel 1 to 10 bar, G 1/4"
€80.67 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 10 to 70 bar, G 1/4"(DRSD 70 B)
DRSD 70 B
Pressure switch, Zinc plated steel 10 to 70 bar, G 1/4"
€83.55 incl. VAT
Immediately available
Pressure switch, Zinc plated steel 50 to 200 bar, G 1/4"(DRSD 200 B)
DRSD 200 B
Pressure switch, Zinc plated steel 50 to 200 bar, G 1/4"
€91.99 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
