Item group
Push-in fitting push-on fitting, Big
Materials:
Body: POM (Ø 28: brass / POM, Ø 32: PP), seal: NBR
Temperature range:
-20 to +70 °C
Operating pressure:
-0,95 to 10 bar (70°C: max 7 bar)
Media:
Oiled and unoiled compressed air, neutral gasses, cold water
Advantages:
•Ideal for compressed air distribution in halls, buildings, etc.,
•numerous approvals: FDA, DVGW-W270, KTW, NSF 51 & 61 (not valid for IQSG 1215, IQSG 3422, IQSG 1028 as well as Ø 32)
•numerous approvals: FDA, DVGW-W270, KTW, NSF 51 & 61 (not valid for IQSG 1215, IQSG 3422, IQSG 1028 as well as Ø 32)
Documents:
More information
Push-in fitting push-on fitting, Big:
2 of 2 articles
IQSF 1215H MS
Screw-on fittings Rp 1/2"-15mm push-in nipple, IQS-Big
€14.18
incl. VAT

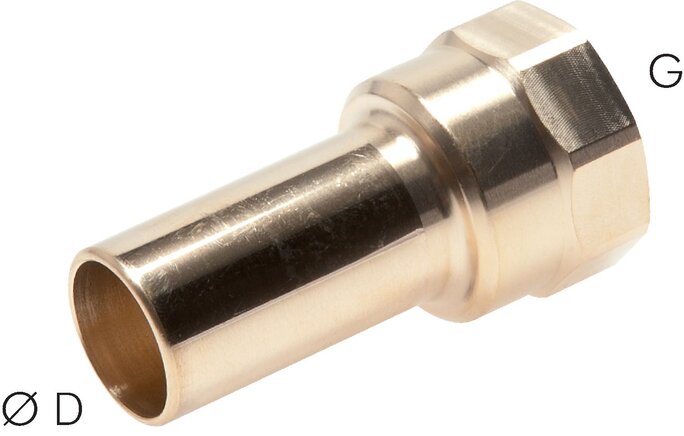

IQSF 3422H MS
Screw-on fittings Rp 3/4"-22mm push-in nipple, IQS-Big
€24.49
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
