Item group

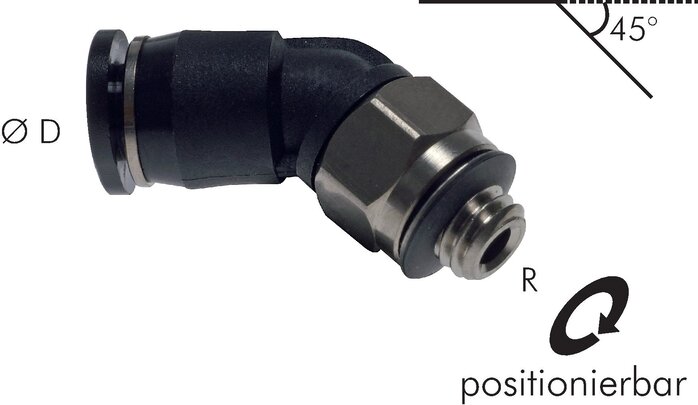

Push in fittings 45°, Mini
Materials:
Body: nickel-plated brass (M 3: nickel-plated steel) / PBT, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated brass (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•Extremely compact design,
•M 7 thread available,
•M 3, M 5, M 6, M 7 and G 1/8” threads are outfitted with a captive O-ring, which helps prevent the thread from tearing and seals it reliably even after multiple assemblies
•M 7 thread available,
•M 3, M 5, M 6, M 7 and G 1/8” threads are outfitted with a captive O-ring, which helps prevent the thread from tearing and seals it reliably even after multiple assemblies
*thread sealing: Plastic-coated metal sealing ring
Documents:
More information
Filter items
more filters
Push in fittings 45°, Mini:
4 of 4 articles
IQSMW M54 *
45° push in fitting M 5-4mm, IQS mini
€10.39
incl. VAT
IQSMW M56 *
45° push in fitting M 5-6mm, IQS mini
€10.75
incl. VAT
IQSMW 184
45° push in fitting R 1/8"-4mm, IQS mini
€9.94
incl. VAT
IQSMW 186
45° push in fitting R 1/8"-6mm, IQS mini
€10.15
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
