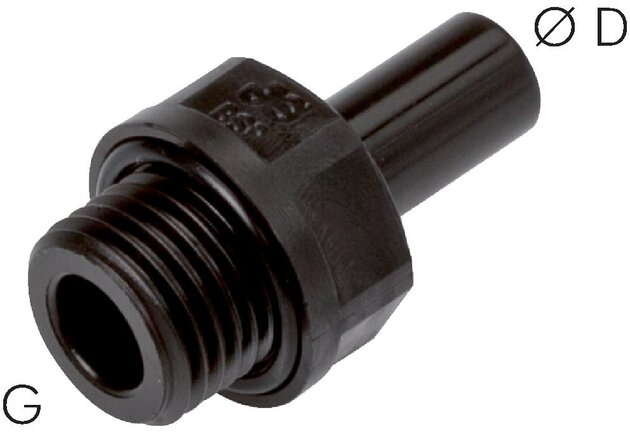

Push in fittings screw in nozzles, FDA

Description

Materials:
Body and sleeve: POM (FDA approved), holding claw: Stainless steel, seals: NBR (FDA approved)

Temperature range:
-20°C bis +70°C

Operating pressure:
-0,95 to 16 bar (Ø 12 mm: max. 10 bar)

Media:
oiled and unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids, mild chemicals

Approvals:
FDA, NSF, WRC, ACS and KTW

Find the right item

G
D [mm]
Operating pressure [bar]

Push in fittings screw in nozzles, FDA: 14 of 14 items

Screw in sockets G 1/8"-4mm push in nipple, IQS-FDA
  • G

    G 1/8"

  • D [mm]

    4

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,21 €

Screw in sockets G 1/8"-5mm push in nipple, IQS-FDA
  • G

    G 1/8"

  • D [mm]

    5

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,21 €

Screw in sockets G 1/8"-6mm push in nipple, IQS-FDA
  • G

    G 1/8"

  • D [mm]

    6

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

0,96 €

Screw in sockets G 1/8"-8mm push in nipple, IQS-FDA
  • G

    G 1/8"

  • D [mm]

    8

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,09 €

Screw in sockets G 1/4"-4mm push in nipple, IQS-FDA
  • G

    G 1/4"

  • D [mm]

    4

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,21 €

Screw in sockets G 1/4"-5mm push in nipple, IQS-FDA
  • G

    G 1/4"

  • D [mm]

    5

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

0,96 €

Screw in sockets G 1/4"-6mm push in nipple, IQS-FDA
  • G

    G 1/4"

  • D [mm]

    6

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

0,99 €

Screw in sockets G 1/4"-8mm push in nipple, IQS-FDA
  • G

    G 1/4"

  • D [mm]

    8

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,21 €

Screw in sockets G 1/4"-10mm push in nipple, IQS-FDA
  • G

    G 1/4"

  • D [mm]

    10

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,12 €

Screw in sockets G 3/8"-8mm push in nipple, IQS-FDA
  • G

    G 3/8"

  • D [mm]

    8

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,69 €

Screw in sockets G 3/8"-10mm push in nipple, IQS-FDA
  • G

    G 3/8"

  • D [mm]

    10

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,72 €

Screw in sockets G 3/8"-12mm push in nipple, IQS-FDA
  • G

    G 3/8"

  • D [mm]

    12

  • Operating pressure [bar]

    -0.95 to 10

Immediately available

1,53 €

Screw in sockets G 1/2"-10mm push in nipple, IQS-FDA
  • G

    G 1/2"

  • D [mm]

    10

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

2,04 €

Screw in sockets G 1/2"-12mm push in nipple, IQS-FDA
  • G

    G 1/2"

  • D [mm]

    12

  • Operating pressure [bar]

    -0.95 to 10

Immediately available

2,14 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
