Item group

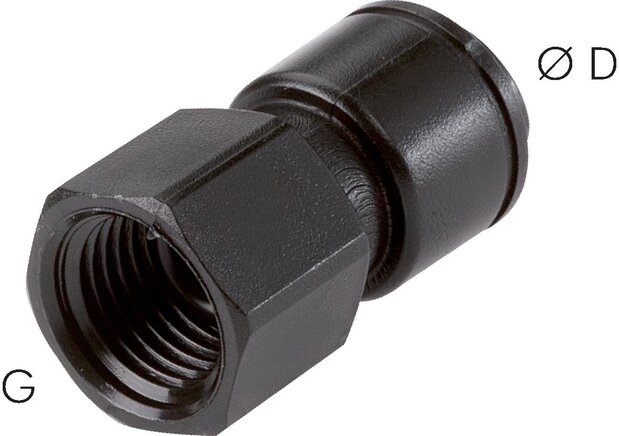

Push in fittings with female threads, FDA

Materials:

Body and sleeve: POM (FDA approved), holding claw: Stainless steel, seals: NBR (FDA approved)

Temperature range:

-20 to +70 °C

Operating pressure:

-0,95 to 16 bar (Ø 12 mm: max. 10 bar)

Media:

oiled and unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids, mild chemicals

Approvals:

FDA, NSF, WRC, ACS and KTW

Documents:

More information Less information

Filter items

Design
Please select
Permission
Please select
Measurement switching distance [mm]
Please select
Secured safety distance [mm]
Please select
more filters
Push in fittings with female threads, FDA:
5 of 5 articles
Push in fittings with female threads G 1/8"-4mm, IQS-FDA(IQSF 184 FDA)
IQSF 184 FDA
Push in fittings with female threads G 1/8"-4mm, IQS-FDA
€3.88 incl. VAT
Immediately available
Push in fittings with female threads G 1/8"-6mm, IQS-FDA(IQSF 186 FDA)
IQSF 186 FDA
Push in fittings with female threads G 1/8"-6mm, IQS-FDA
€4.18 incl. VAT
Immediately available
Push in fittings with female threads G 1/4"-6mm, IQS-FDA(IQSF 146 FDA)
IQSF 146 FDA
Push in fittings with female threads G 1/4"-6mm, IQS-FDA
€4.97 incl. VAT
Immediately available
Push in fittings with female threads G 1/4"-8mm, IQS-FDA(IQSF 148 FDA)
IQSF 148 FDA
Push in fittings with female threads G 1/4"-8mm, IQS-FDA
€4.22 incl. VAT
Immediately available
Push in fittings with female threads G 3/8"-8mm, IQS-FDA(IQSF 388 FDA)
IQSF 388 FDA
Push in fittings with female threads G 3/8"-8mm, IQS-FDA
€5.58 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
