Item group

Quick exhaust valves SE, SEU

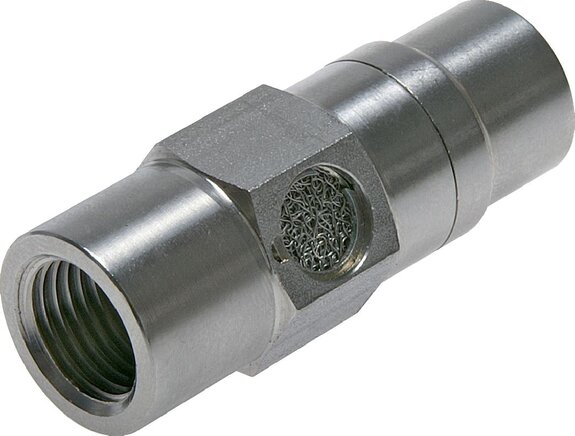

Exemplary representation: Compact quick-exhaust valve of stainless steel Schematic symbol: Quick exhaust valve

Materials:

Body: 1.4404, seals: FKM, damper material 1.4401

Temperature range:

-10°C to +150°C

Operating pressure:

2 to 10 bar

Media:

oiled and unoiled filtered compressed air

Function:

These valves are used to vent the cylinders quickly and enhance the cylinder speed. For this, they are screwed directly on the cylinder using the connection 2. Breathing: The air flowing through the control valve can flow continuously from connection 1 to the connection 2. Venting: When the control valve switches over to venting, 1 becomes depressurized. The valve switches to flow from 2 to 3 and the air from the cylinder can be freely vented into the open.

Warning:

Only use with cylinders where sufficient damping is provided in the end positions (adjustable end cushioning, shock absorbers).

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 785) atlas9_seiten/785.pdf
