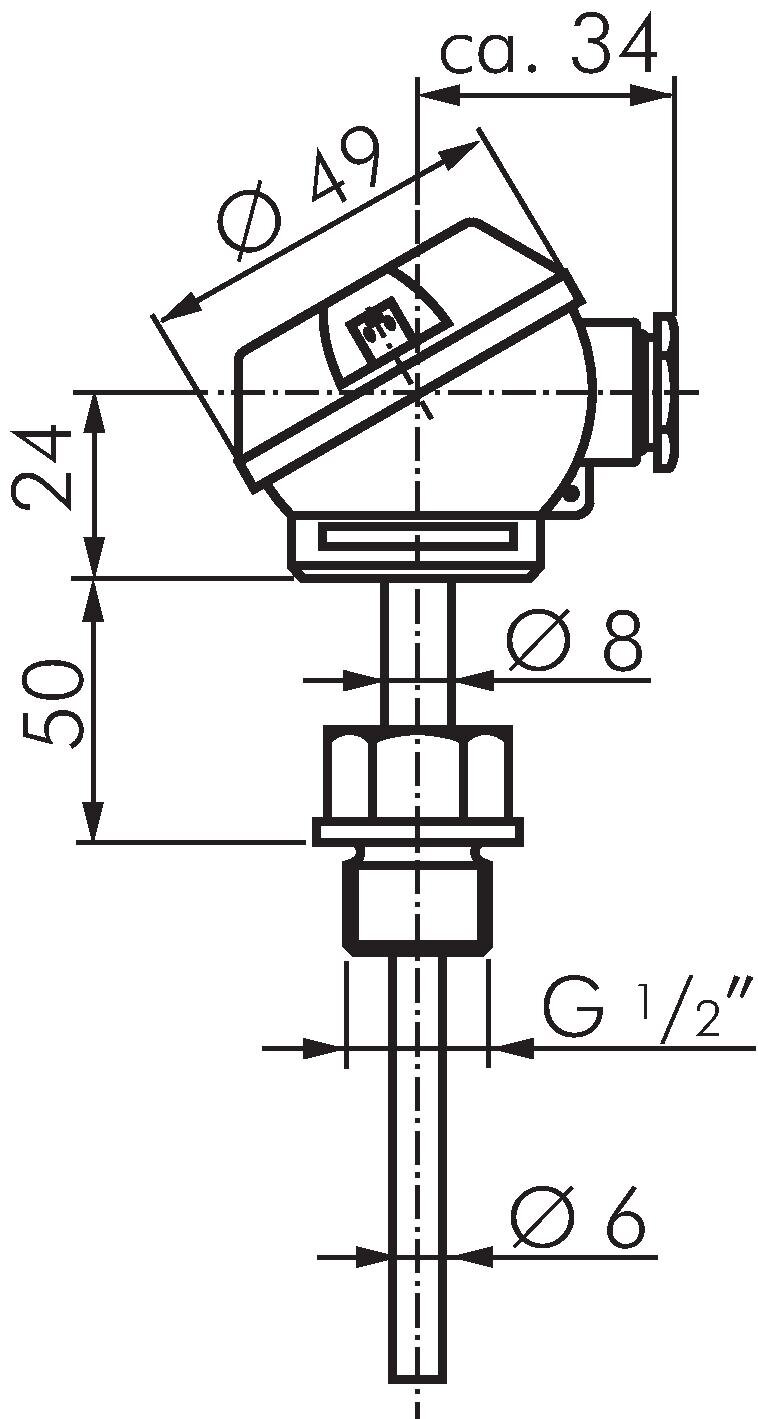

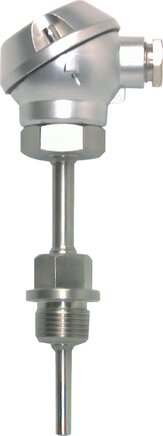

Resistor thermometer with small connection head, DIN EN IEC 60751 (will be discontinued)

Materials:

Thread and protective pipe: 1.4571, connection head: Aluminium pressure casting

Temperature range:

-40 to +100 °C (at the connection head)

Measurement range:

-50 to +100 °C

Protection class:

IP 54

Connection:

G 1/2" (with 6 mm protective tube)

Measuring element:

1 x Pt100 (2-wire)

Electrical connection:

Screw terminals, cable inlet: M16 x 1.5

Documents:

More information Less information

Filter items

Wykonanie
Please select
Długość montażowa (czujnik z gwintem)
Please select
Resistor thermometer with small connection head, DIN EN IEC 60751 (will be discontinued):
3 of 3 articles
Resistance thermometer Pt100 (2-wire), G1/2"-6x250mm, with short neck tube(PT 1006/250 AK)
PT 1006/250 AK
Resistance thermometer Pt100 (2-wire), G1/2"-6x250mm, with short neck tube
€192.79 incl. VAT
Immediately available
Resistance thermometer Pt100 (2-wire), G1/2"-6x150mm, without a neck pipe(PT 1006/150 AKK)
PT 1006/150 AKK
Resistance thermometer Pt100 (2-wire), G1/2"-6x150mm, without a neck pipe
€150.58 incl. VAT
Immediately available
Resistance thermometer Pt100 (2-wire), G1/2"-6x300mm, without a neck pipe(PT 1006/300 AKK)
PT 1006/300 AKK
Resistance thermometer Pt100 (2-wire), G1/2"-6x300mm, without a neck pipe
€163.23 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
