Item group

Resistor thermometer with small connection head, DIN EN IEC 60751

Name: Resistance thermometer Pt100 (4-wire), G1/2"-6x50mm, with short neck tube
Brand: Landefeld
SKU: PT1004AK 126-50 HR
Price: 111.86 EUR
Availability: InStock

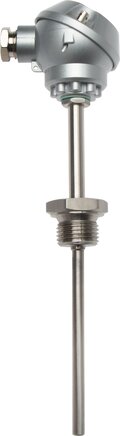

Exemplary representation: Resistance thermometer with small connection head, with short neck tube

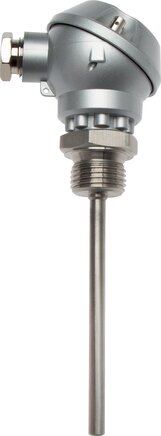

Exemplary representation: Resistance thermometer with small connection head, without neck tube

Application:

For general use in mechanical engineering, heating and sanitary engineering, the food and beverage industry. Very well suited for low-cost temperature measurement in gases or liquids.

Materials:

Thread and protective pipe: 1.4571, connection head: Aluminium pressure casting

Temperature range:

-40°C to +100°C (at the connection head)

Measurement range:

-50°C to +400°C

Protection class:

IP 65

Connection:

G 1/2" (with 6 mm protective tube)

Operating pressure at the thermowell:

max. 40 bar

Measuring element:

1 x Pt100 (4-wire, but can also be used as 2-wire or 3-wire), class F 0.3 (class B) in accordance with DIN EN IEC 60751

Electrical connection:

Screw terminals, cable inlet: M 16x1,5

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 701) atlas9_seiten/701.pdf

Resistor thermometer with small connection head, DIN EN IEC 60751:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

PT1004AK 126-50 HR

Resistance thermometer Pt100 (4-wire), G1/2"-6x50mm, with short neck tube

111,86€ incl. VAT

Version	Measuring element	Installation length (sensor including thread) [mm]
with short neck tube	Pt100 (4-wire)	50

PT1004AK 126-100 HR

Resistance thermometer Pt100 (4-wire), G1/2"-6x100mm, with short neck tube

115,67€ incl. VAT

Version	Measuring element	Installation length (sensor including thread) [mm]
with short neck tube	Pt100 (4-wire)	100

PT1004AK 126-150 HR

Resistance thermometer Pt100 (4-wire), G1/2"-6x150mm, with short neck tube

119,95€ incl. VAT

Version	Measuring element	Installation length (sensor including thread) [mm]
with short neck tube	Pt100 (4-wire)	150

PT1004AK 126-200 HR

Resistance thermometer Pt100 (4-wire), G1/2"-6x200mm, with short neck tube

124,24€ incl. VAT

Version	Measuring element	Installation length (sensor including thread) [mm]
with short neck tube	Pt100 (4-wire)	200

PT1004AK 126-250 HR

Resistance thermometer Pt100 (4-wire), G1/2"-6x250mm, with short neck tube

128,04€ incl. VAT

Version	Measuring element	Installation length (sensor including thread) [mm]
with short neck tube	Pt100 (4-wire)	250

PT1004AK 126-300 HR

Resistance thermometer Pt100 (4-wire), G1/2"-6x300mm, with short neck tube

132,33€ incl. VAT

Version	Measuring element	Installation length (sensor including thread) [mm]
with short neck tube	Pt100 (4-wire)	300

PT1004AK 126-50

Resistance thermometer Pt100 (4-wire), G1/2"-6x50mm, without a neck pipe

104,24€ incl. VAT

Version	Measuring element	Installation length (sensor including thread) [mm]
without a neck pipe	Pt100 (4-wire)	50

PT1004AK 126-100

Resistance thermometer Pt100 (4-wire), G1/2"-6x100mm, without a neck pipe

111,86€ incl. VAT

Version	Measuring element	Installation length (sensor including thread) [mm]
without a neck pipe	Pt100 (4-wire)	100

PT1004AK 126-150

Resistance thermometer Pt100 (4-wire), G1/2"-6x150mm, without a neck pipe

115,67€ incl. VAT

Version	Measuring element	Installation length (sensor including thread) [mm]
without a neck pipe	Pt100 (4-wire)	150

PT1004AK 126-200

Resistance thermometer Pt100 (4-wire), G1/2"-6x200mm, without a neck pipe

119,95€ incl. VAT

Version	Measuring element	Installation length (sensor including thread) [mm]
without a neck pipe	Pt100 (4-wire)	200

PT1004AK 126-250

Resistance thermometer Pt100 (4-wire), G1/2"-6x250mm, without a neck pipe

124,24€ incl. VAT

Version	Measuring element	Installation length (sensor including thread) [mm]
without a neck pipe	Pt100 (4-wire)	250

PT1004AK 126-300

Resistance thermometer Pt100 (4-wire), G1/2"-6x300mm, without a neck pipe

128,04€ incl. VAT

Version	Measuring element	Installation length (sensor including thread) [mm]
without a neck pipe	Pt100 (4-wire)	300
