Item group

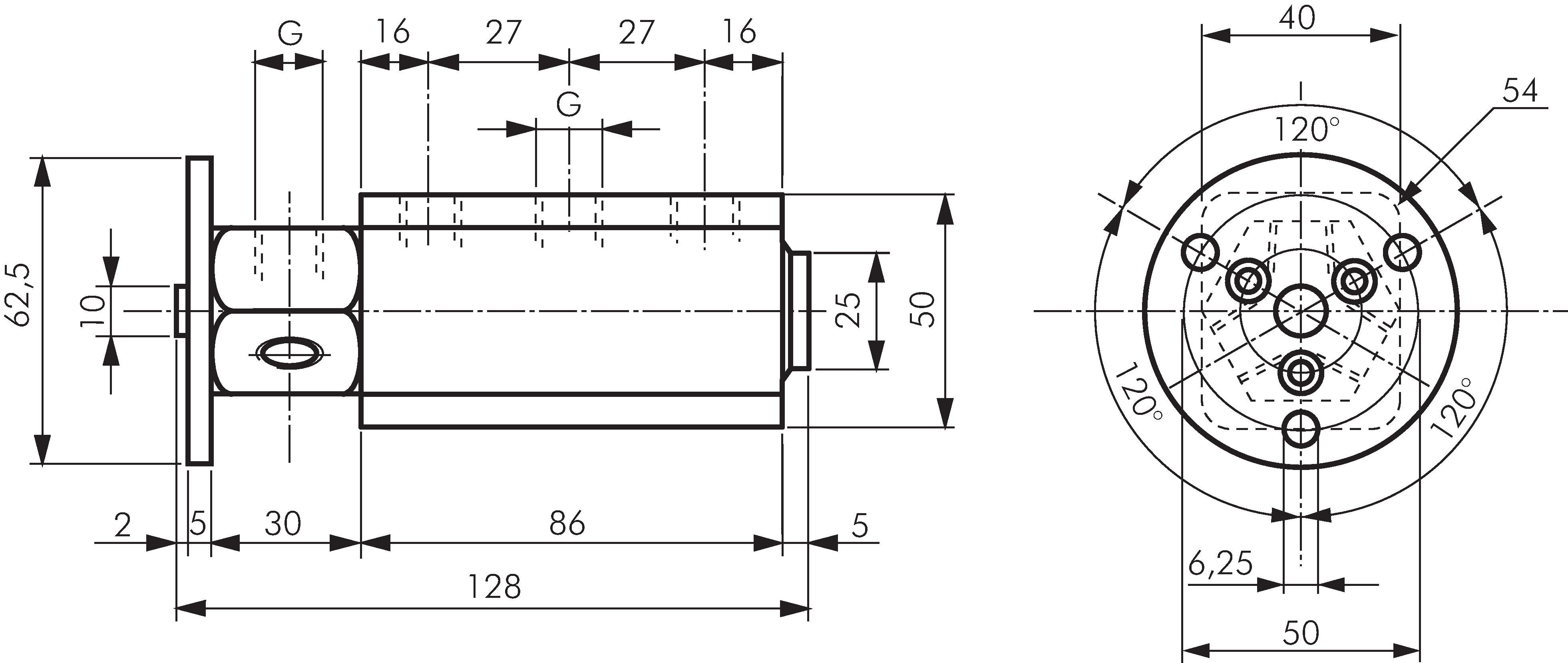

Rotary joints, 3-way, up to 200 rpm
Version:
3 separated inlets and 3 separated outlets
Materials:
Body: nickel-plated brass, seals: PUR, pilot pin, flange screw and safety ring: zinc-plated steel
Media:
Oiled compressed air
Optional:
Usage for vacuum (-1 to 0 bar) -VU, FKM seals (-20°C up to max. +150°C) -V
Documents:
More information
Filter items
Rotary joints, 3-way, up to 200 rpm:
3 of 3 articles
DDF 14-3
Rotary joint 3-way, G 1/4", Standard
€579.68
incl. VAT
DDF 14-3 VU
Rotary joint 3-way, G 1/4", Insert for vacuum
€819.51
incl. VAT
DDF 14-3 V
Rotary joint 3-way, G 1/4", FKM seals
€827.45
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
