Item group

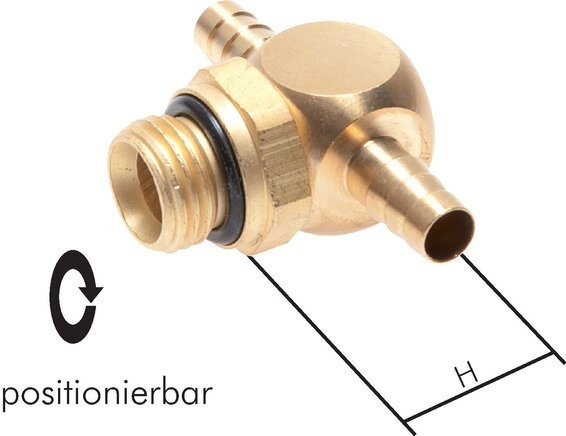

Rotatable T-push on fittings for PU-, PUN- and PA hose
Materials:
Body: brass, seal: NBR
Temperature range:
-20 to +60 °C
Assembly:
Push the tube on until it reaches the stop.
Dismounting:
Remove PU/cut open hose
Operating pressure:
PA-hose: 10 bar, PU-hose: 6 bar. (without tensile stress).
Documents:
More information
Filter items
more filters
Rotatable T-push on fittings for PU-, PUN- and PA hose:
7 of 7 articles
TCN 53 MS
T-connector, M 5-3mm inside, copper
€11.96
incl. VAT
TCN 54 MS
T-connector, M 5-4mm inside, copper
€11.57
incl. VAT
TCN 183 MS
T-connector, G 1/8"-3mm inside, copper
€11.89
incl. VAT
TCN 184 MS
T-connector, G 1/8"-4mm inside, copper
€11.89
incl. VAT
TCN 186 MS
T-connector, G 1/8"-6mm inside, copper
€11.89
incl. VAT
TCN 144 MS
T-connector, G 1/4"-4mm inside, copper
€13.10
incl. VAT
TCN 146 MS
T-connector, G 1/4"-6mm inside, copper
€13.10
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
