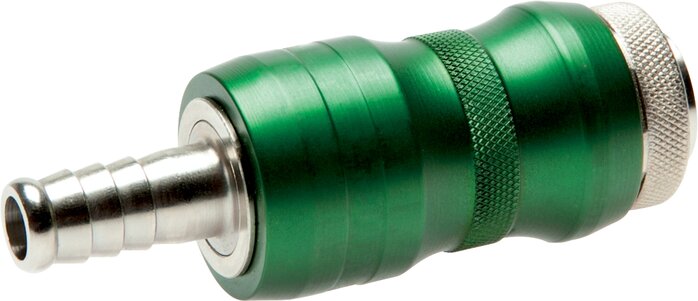

Safety coupling socket with manual slide valve & hose screw connection, NW 7.2

Exemplary representation detailed view: Plug dimensions

{{ $t('shop.display.artikelgruppe.youtube') }}:

Materials:

Body: nickel-plated brass/hardened steel, sliding sleeve: anodized aluminium, seal: NBR

Temperature range:

-20°C to +100°C

Operating pressure:

0 - 20 bar

Flow*:

2050 l/min

Function:

This safety coupling is a combination of a manual slide valve and the quick coupling. The coupling opens only when the plug side is vented through the sliding sleeve. The sliding sleeve can be moved only in the coupled state and functions like a 3/2-way manual slide valve.

Compatible with**:

Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
**Names and designations are partly trademarks of the manufacturers entered.*6 bar input pressure, 1 bar pressure difference

{{ $t('shop.all.dokumente') }}:

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Safety coupling socket with manual slide valve & hose screw connection, NW 7.2:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
Safety coupling socket (NW7,2) 6 (1/4")mm hose m. HSV
KDSSI 6 NW7 HSV
Safety coupling socket (NW7,2) 6 (1/4")mm hose m. HSV
{{ /* TODO irgendwann: Vue draus machen */ }} 46,79€ incl. VAT
46,79€ incl. VAT
Safety coupling socket (NW7,2) 8 (5/16")mm hose m. HSV
KDSSI 8 NW7 HSV
Safety coupling socket (NW7,2) 8 (5/16")mm hose m. HSV
{{ /* TODO irgendwann: Vue draus machen */ }} 46,79€ incl. VAT
46,79€ incl. VAT
Safety coupling socket (NW7,2) 9 (3/8")mm hose m. HSV
KDSSI 9 NW7 HSV
Safety coupling socket (NW7,2) 9 (3/8")mm hose m. HSV
{{ /* TODO irgendwann: Vue draus machen */ }} 46,79€ incl. VAT
46,79€ incl. VAT
Safety coupling socket (NW7,2) 10mm hose m. HSV
KDSSI 10 NW7 HSV
Safety coupling socket (NW7,2) 10mm hose m. HSV
{{ /* TODO irgendwann: Vue draus machen */ }} 46,79€ incl. VAT
46,79€ incl. VAT
Safety coupling socket (NW7,2) 13 (1/2")mm hose m. HSV
KDSSI 13 NW7 HSV
Safety coupling socket (NW7,2) 13 (1/2")mm hose m. HSV
{{ /* TODO irgendwann: Vue draus machen */ }} 47,20€ incl. VAT
47,20€ incl. VAT
