Safety push-button coupling sockets with male thread, NW 7,2

Exemplary representation: Steel Exemplary representation: Stainless steel Exemplary representation: Plastic detailed view: Plug dimensions

{{ $t('shop.display.artikelgruppe.youtube') }}:

Materials:

Type zinc-plated steel: Body: Hardened and zinc-plated steel / aluminium / nickel-plated brass, seal: NBR, type stainless steel: Body: 1.4404, spring: 1.4319, balls: 1.4028, seal: FKM, Type plastic: Body: composite material (conductive) / nickel-plated brass, seal: NBR

Temperature range:

-20°C to max. +70°C (plastic type: -15°C to max. +70°C)

Operating pressure:

0 - 12 bar

Flow*:

1500 l/min

Function:

The coupling occurs as for standard couplings by inserting the push-in nipple into the coupling socket. Uncoupling is effected by pressing the uncoupling button. Then the coupling socket closes and ventilates the coupling plug when still held in the coupling socket. This reliably prevents the dangerous recoil effect. Zinc-plated steel type and 1.4404: Plug is released by pressing a second time, plastic type: plug is only released after the residual pressure on the plug side has dropped below approx. 0,5 bar.

Advantages:

•Coupling head can be positioned - after screwing in, the pushbutton can be rotated to an ergonomically optimum position,
•Safety function is controlled via the residual pressure on the plug side (only type plastic),
•antistatic, meets the ATEX 2 standard (not a potential source of ignition) and can therefore be used in paint booths, environments with a lot of gas or grain silo operations (only type plastic),
•plastic body prevents scratching of surfaces (only type plastic),
•manufactured silicone-free (only type plastic)

Recommendation:

Use coupling plugs made of hardened steel!

Compatible with**:

Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
**Names and designations are partly trademarks of the manufacturers entered.*6 bar input pressure, 0.6 bar pressure difference

{{ $t('shop.all.dokumente') }}:

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Safety push-button coupling sockets with male thread, NW 7,2:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

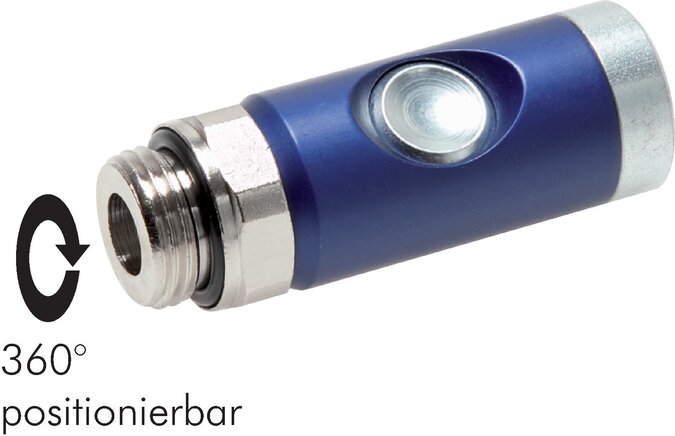

Safety push button coupling (NW7,2), G 1/4" AG, Zinc plated steel
KDGSIP 14 NW7 ST
Safety push button coupling (NW7,2), G 1/4" AG, Zinc plated steel
{{ /* TODO irgendwann: Vue draus machen */ }} 24,80€ incl. VAT
24,80€ incl. VAT
Safety push button coupling (NW7,2), G 3/8" AG, Zinc plated steel
KDGSIP 38 NW7 ST
Safety push button coupling (NW7,2), G 3/8" AG, Zinc plated steel
{{ /* TODO irgendwann: Vue draus machen */ }} 24,80€ incl. VAT
24,80€ incl. VAT
Safety push button coupling (NW7,2), G 1/2" AG, Zinc plated steel
KDGSIP 12 NW7 ST
Safety push button coupling (NW7,2), G 1/2" AG, Zinc plated steel
{{ /* TODO irgendwann: Vue draus machen */ }} 26,17€ incl. VAT
26,17€ incl. VAT

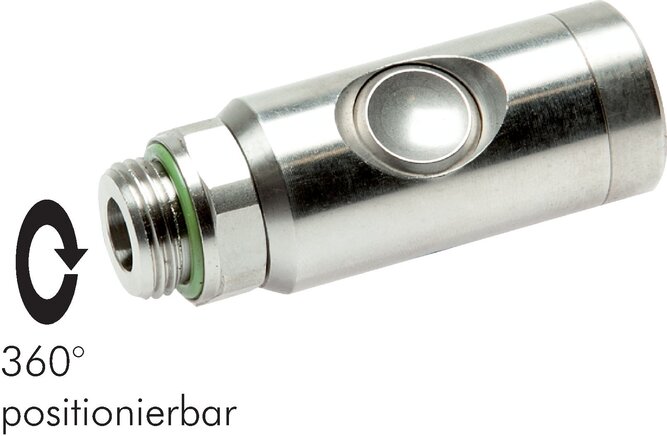

Safety push button coupling (NW7,2), G 1/4" AG, Stainless steel
KDGSIP 14 NW7 ES
Safety push button coupling (NW7,2), G 1/4" AG, Stainless steel
{{ /* TODO irgendwann: Vue draus machen */ }} 263,26€ incl. VAT
263,26€ incl. VAT
Safety push button coupling (NW7,2), G 3/8" AG, Stainless steel
KDGSIP 38 NW7 ES
Safety push button coupling (NW7,2), G 3/8" AG, Stainless steel
{{ /* TODO irgendwann: Vue draus machen */ }} 263,26€ incl. VAT
263,26€ incl. VAT
Safety push button coupling (NW7,2), G 1/2" AG, Stainless steel
KDGSIP 12 NW7 ES
Safety push button coupling (NW7,2), G 1/2" AG, Stainless steel
{{ /* TODO irgendwann: Vue draus machen */ }} 270,37€ incl. VAT
270,37€ incl. VAT

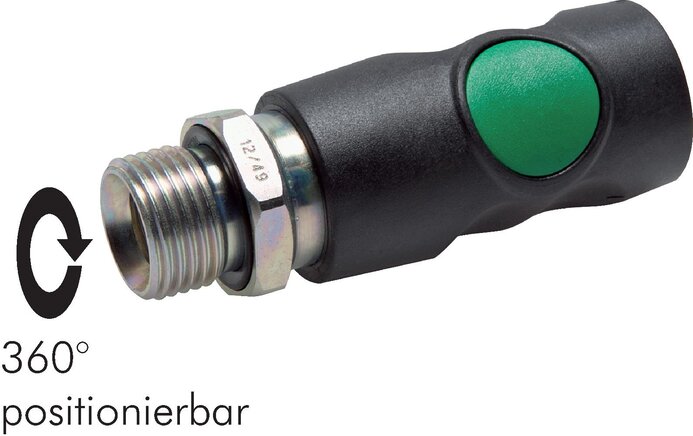

Safety push button coupling (NW7,2), G 1/4" AG, Plastic
KDGSIP 14 NW7
Safety push button coupling (NW7,2), G 1/4" AG, Plastic
{{ /* TODO irgendwann: Vue draus machen */ }} 39,81€ incl. VAT
39,81€ incl. VAT
Safety push button coupling (NW7,2), G 3/8" AG, Plastic
KDGSIP 38 NW7
Safety push button coupling (NW7,2), G 3/8" AG, Plastic
{{ /* TODO irgendwann: Vue draus machen */ }} 39,81€ incl. VAT
39,81€ incl. VAT
Safety push button coupling (NW7,2), G 1/2" AG, Plastic
KDGSIP 12 NW7
Safety push button coupling (NW7,2), G 1/2" AG, Plastic
{{ /* TODO irgendwann: Vue draus machen */ }} 39,81€ incl. VAT
39,81€ incl. VAT
