Item group

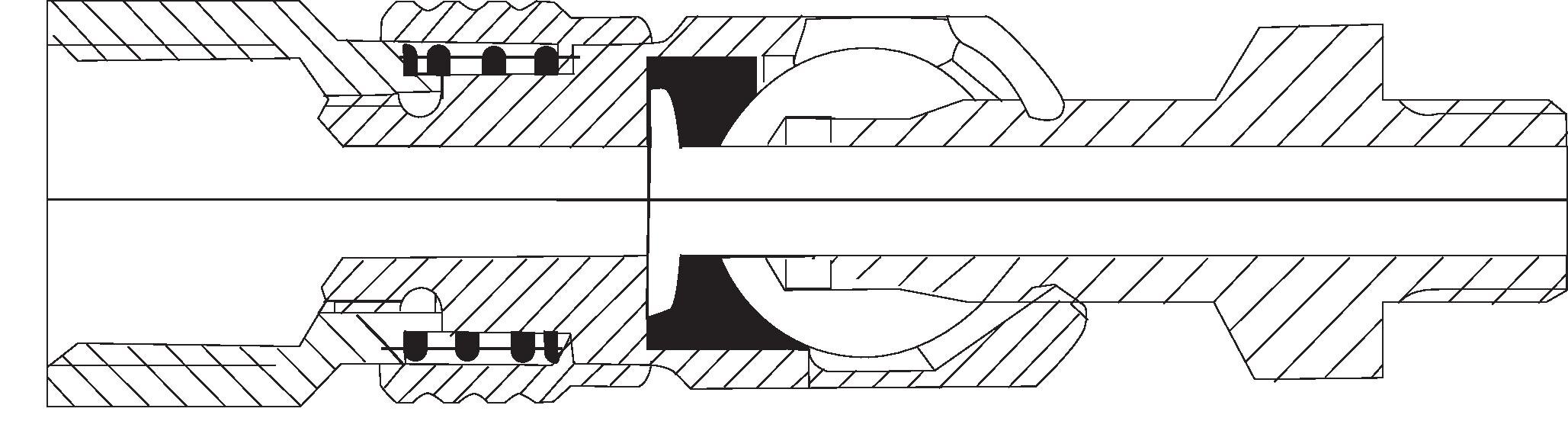

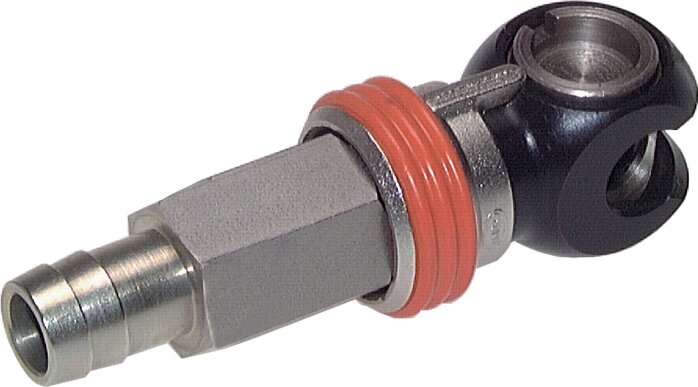

Safety swivel coupling sockets with hose screw connection, NW 7,2

Materials:

Body: nickel-plated steel, seal: NBR

Temperature range:

-20 to +100 °C

Operating pressure:

-0,95 to 25 bar (can be coupled in / out up to max. 15 bar

Flow:

1800 l/min

Recommendation:

Only use coupling plugs made of hardened steel!

Compatible with**:

Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
*6 bar input pressure, 0,5 bar pressure difference
*Names and designations are.partly. registered trademarks of the respective manufacturer.
