Item group

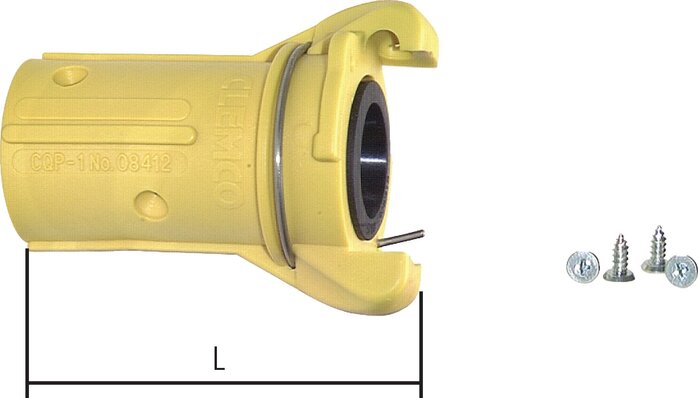

Sandblast couplings with hose connection, 58 mm

Exemplary representation: Malleable cast iron, zinc plated Exemplary representation: Nylon

Clamp width:

58 mm

Suitable:

Couplings to connect sand blast hoses without cross section constriction.

Materials:

Körper: malleable cast iron, zinc-plated, yellow chromated or nylon, seal: NBR

Temperature range:

-15°C to +50°C

Operating pressure:

12 bar

Scope of delivery:

Malleable cast iron type: with retaining screws, nylon type: with retaining screws and automatic lock function

Recommended accessories for couplings made from malleable cast iron:

Safety clip or automatic safety

Warning:

Please note that the malleable cast iron couplings SSKIG 11462, SSKIG 11262, SSKIG G5062 and the nylon coupling have an improved sealing system so that the hose or the thread is positioned right on the seal. The advantage is that the blasting abrasives cannot be compressed behind the seal. In the case of all other couplings, the hose is separated from the seal by a ridge.

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 335) atlas9_seiten/335.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Sandblast couplings with hose connection, 58 mm:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
Sandblast coupling Malleable cast iron, zinc plated, hose 25x39 mm
Sandblast coupling Malleable cast iron, zinc plated, hose 32x48 mm
Sandblast coupling Malleable cast iron, zinc plated, hose 38x56 mm
Sandblast coupling Malleable cast iron, zinc plated, hose 42x60 mm
Sandblast coupling nylon, hose 19x33 mm
Sandblast coupling nylon, hose 25x39 mm
Sandblast coupling nylon, hose 32x48 mm
Sandblast coupling nylon, hose 38x56 mm
Sandblast coupling nylon, hose 42x60 mm
