Item group

Self-aligning ball bearings, cone for spring pins, DIN 630

Description:

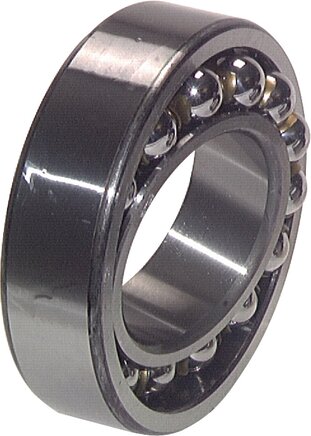

Self-aligning ball bearings are double row ball bearings with a hollow round outer ring. In this way it is possible to compensate for alignment errors. Self-aligning ball bearings are supplied "open" (default) or "closed and sealed" on both sides (2RS version). The 2RS version is filled at the factory with a quality grease. Open ball bearings must be lubricated externally. For the closed version, the relevant operating limits should be observed, e.g. at higher ambient temperatures.

Tolerance:

DIN 620 Standard tolerance

Bearing play:

enlarged bearing play (matches C3)

Scope of delivery:

Self-aligning ball bearings, tapered inner borehole without spring pins (please order spring pins separately)

Manufacturer:

We supply only bearings from the manufacturers SKF or FAG!

Note for replacement purchasing other brands:

Please let us know the manufacturer and the exact bearing name including the suffix.

Documents:

More information Less information
Self-aligning ball bearings, cone for spring pins, DIN 630:
20 of 116 articles
Self-aligning ball bearing, DIN 630, 20x52x15mm, open(LA 1205 K)
LA 1205 K
Self-aligning ball bearing, DIN 630, 20x52x15mm, open
€78.17 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 20x52x18mm, open(LA 2205 K)
LA 2205 K
Self-aligning ball bearing, DIN 630, 20x52x18mm, open
€101.09 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 20x62x17mm, open(LA 1305 K)
LA 1305 K
Self-aligning ball bearing, DIN 630, 20x62x17mm, open
€109.27 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 20x62x24mm, open(LA 2305 K)
LA 2305 K
Self-aligning ball bearing, DIN 630, 20x62x24mm, open
€153.06 incl. VAT
deliverable again in ⌀ 3 days
Self-aligning ball bearing, DIN 630, 25x62x16mm, open(LA 1206 K)
LA 1206 K
Self-aligning ball bearing, DIN 630, 25x62x16mm, open
€84.45 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 25x62x20mm, open(LA 2206 K)
LA 2206 K
Self-aligning ball bearing, DIN 630, 25x62x20mm, open
€109.27 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 25x72x19mm, open(LA 1306 K)
LA 1306 K
Self-aligning ball bearing, DIN 630, 25x72x19mm, open
€135.17 incl. VAT
Not in stock
Self-aligning ball bearing, DIN 630, 25x72x27mm, open(LA 2306 K)
LA 2306 K
Self-aligning ball bearing, DIN 630, 25x72x27mm, open
€190.88 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 30x72x17mm, open(LA 1207 K)
LA 1207 K
Self-aligning ball bearing, DIN 630, 30x72x17mm, open
€103.61 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 30x72x23mm, open(LA 2207 K)
LA 2207 K
Self-aligning ball bearing, DIN 630, 30x72x23mm, open
€131.23 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 30x80x21mm, open(LA 1307 K)
LA 1307 K
Self-aligning ball bearing, DIN 630, 30x80x21mm, open
€156.51 incl. VAT
Not in stock
Self-aligning ball bearing, DIN 630, 30x80x31mm, open(LA 2307 K)
LA 2307 K
Self-aligning ball bearing, DIN 630, 30x80x31mm, open
€222.43 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 35x80x18mm, open(LA 1208 K)
LA 1208 K
Self-aligning ball bearing, DIN 630, 35x80x18mm, open
€121.18 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 35x80x23mm, open(LA 2208 K)
LA 2208 K
Self-aligning ball bearing, DIN 630, 35x80x23mm, open
€149.59 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 35x90x23mm, open(LA 1308 K)
LA 1308 K
Self-aligning ball bearing, DIN 630, 35x90x23mm, open
€190.10 incl. VAT
Not in stock
Self-aligning ball bearing, DIN 630, 35x90x33mm, open(LA 2308 K)
LA 2308 K
Self-aligning ball bearing, DIN 630, 35x90x33mm, open
€262.45 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 40x85x19mm, open(LA 1209 K)
LA 1209 K
Self-aligning ball bearing, DIN 630, 40x85x19mm, open
€132.17 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 40x85x23mm, open(LA 2209 K)
LA 2209 K
Self-aligning ball bearing, DIN 630, 40x85x23mm, open
€175.49 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 40x100x25mm, open(LA 1309 K)
LA 1309 K
Self-aligning ball bearing, DIN 630, 40x100x25mm, open
€236.07 incl. VAT
Immediately available
Self-aligning ball bearing, DIN 630, 40x100x36mm, open(LA 2309 K)
LA 2309 K
Self-aligning ball bearing, DIN 630, 40x100x36mm, open
€329.81 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
