  3. Short stroke cylinder block form, single acting
Item group

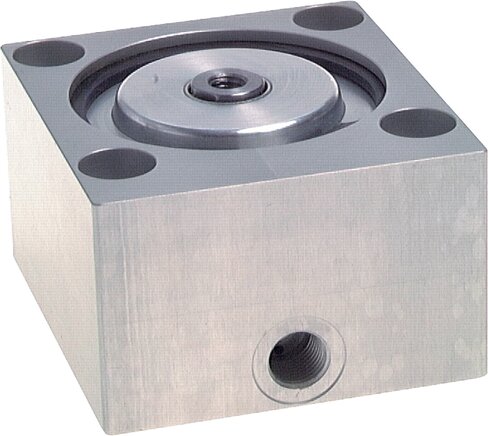

Short stroke cylinder block form, single acting

Materials:

housing: anodized aluminium, piston rod: CK 45 hard chromium plated, end cover Ø 80: anodized aluminium, seals: NBR / Polyurethane

Temperature range:

-20 to +80 °C

Operating pressure:

max. 10 bar
More information Less information
Short stroke cylinder block form, single acting:
3 of 3 articles
Short-stroke cylinders, single acting, piston 20 mm, stroke 4 mm(AV 20/4)
AV 20/4
Short-stroke cylinders, single acting, piston 20 mm, stroke 4 mm
€104.14 incl. VAT
Immediately available
Short-stroke cylinders, single acting, piston 32 mm, stroke 5 mm(AV 32/5)
AV 32/5
Short-stroke cylinders, single acting, piston 32 mm, stroke 5 mm
€127.66 incl. VAT
Immediately available
Short-stroke cylinders, single acting, piston 50 mm, stroke 10 mm(AV 50/10)
AV 50/10
Short-stroke cylinders, single acting, piston 50 mm, stroke 10 mm
€162.23 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
