Item group

Stainless steel 3-way ball valves with direct mounting flange (ISO 5211), up to 63 bar

Name: 3-way ball valve, direct assembly flange G 1/4", L-borehole
Brand: Landefeld
SKU: KH 3/14 LF ES
Price: 294.04 EUR
Availability: InStock

Exemplary representation: Stainless steel 3-way ball valve with direct mounting flange (ISO 5211)

YouTube videos:

Direct assembly flange as per ISO 5211 – A simple and fast solution!

Materials:

Body: 1.4408, ball: 1.4408, seals: PTFE / FKM

Temperature range:

-20 to +180 °C

Properties:

Pressure inlet is possible from all the three sides

Media:

Water, oil, compressed air, vacuum (max. -0,9 bar), fuels, solvents, aggressive media

Optional:

Certificate 3.1

Advantages:

•A drive can be mounted directly on the ISO 5211 direct assembly flange to automate the ball valve.

Documents:

Catalogue page Atlas 9 (Page 537) (PDF)

More information

Stainless steel 3-way ball valves with direct mounting flange (ISO 5211), up to 63 bar:

20 of 22 articles

KH 3/14 LF ES

3-way ball valve, direct assembly flange G 1/4", L-borehole

€294.04 incl. VAT

Quantity

pcs

Immediately available

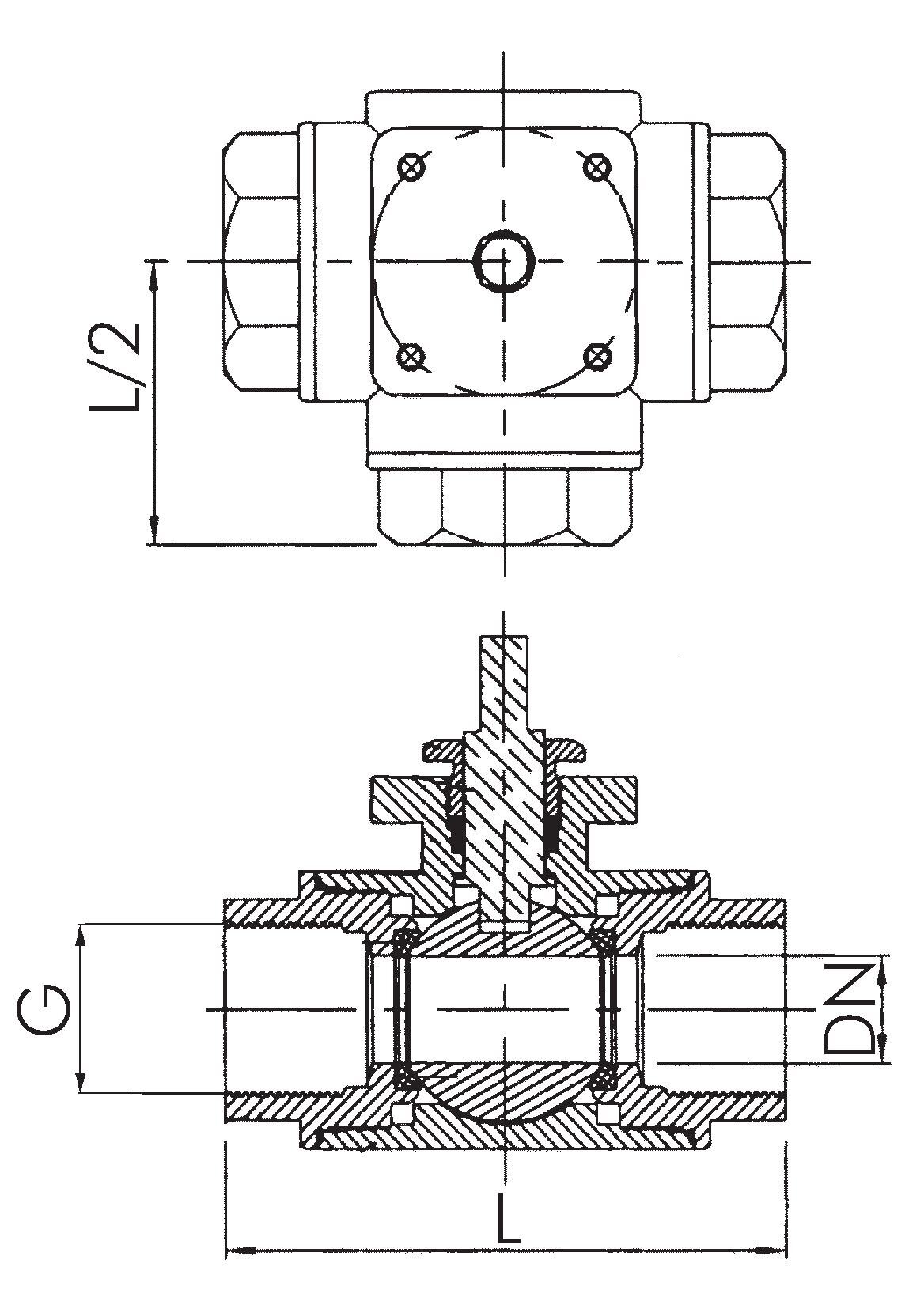

Version	G	DN [mm]	L [mm]
L-borehole	G 1/4"	11	79

KH 3/38 LF ES

3-way ball valve, direct assembly flange G 3/8", L-borehole

€295.27 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 3/8"	12	79

KH 3/12 LF ES

3-way ball valve, direct assembly flange G 1/2", L-borehole

€298.64 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 1/2"	12	79

KH 3/34 LF ES

3-way ball valve, direct assembly flange G 3/4", L-borehole

€367.86 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 3/4"	15	88

KH 3/10 LF ES

3-way ball valve, direct assembly flange G 1", L-borehole

€519.24 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 1"	20	108

KH 3/114 LF ES

3-way ball valve, direct assembly flange G 1-1/4", L-borehole

€675.77 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 1-1/4"	25	124

KH 3/112 LF ES

3-way ball valve, direct assembly flange G 1-1/2", L-borehole

€890.87 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 1-1/2"	32	135

KH 3/20 LF ES

3-way ball valve, direct assembly flange G 2", L-borehole

€1,281.58 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 2"	40	164

KH 3/212 LF ES

3-way ball valve, direct assembly flange G 2-1/2", L-borehole

€1,033.98 incl. VAT

Quantity

pcs

Not in stock

Version	G	DN [mm]	L [mm]
L-borehole	G 2-1/2"	48	168

KH 3/30 LF ES

3-way ball valve, direct assembly flange G 3", L-borehole

€1,124.48 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
L-borehole	G 3"	60	198

KH 3/40 LF ES

3-way ball valve, direct assembly flange G 4", L-borehole

€1,649.82 incl. VAT

Quantity

pcs

Not in stock

Version	G	DN [mm]	L [mm]
L-borehole	G 4"	75	252

KH 3/14 TF ES

3-way ball valve, direct assembly flange G 1/4", T-borehole

€294.06 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 1/4"	11	79

KH 3/38 TF ES

3-way ball valve, direct assembly flange G 3/8", T-borehole

€295.26 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 3/8"	12	79

KH 3/12 TF ES

3-way ball valve, direct assembly flange G 1/2", T-borehole

€298.64 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 1/2"	12	79

KH 3/34 TF ES

3-way ball valve, direct assembly flange G 3/4", T-borehole

€367.85 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 3/4"	15	88

KH 3/10 TF ES

3-way ball valve, direct assembly flange G 1", T-borehole

€519.27 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 1"	20	108

KH 3/114 TF ES

3-way ball valve, direct assembly flange G 1-1/4", T-borehole

€675.77 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 1-1/4"	25	124

KH 3/112 TF ES

3-way ball valve, direct assembly flange G 1-1/2", T-borehole

€890.87 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 1-1/2"	32	135

KH 3/20 TF ES

3-way ball valve, direct assembly flange G 2", T-borehole

€1,281.58 incl. VAT

Quantity

pcs

Immediately available

Version	G	DN [mm]	L [mm]
T-borehole	G 2"	40	164

KH 3/212 TF ES

3-way ball valve, direct assembly flange G 2-1/2", T-borehole

€1,033.98 incl. VAT

Quantity

pcs

Not in stock

Version	G	DN [mm]	L [mm]
T-borehole	G 2-1/2"	48	168

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
