Item group

Straight hose connections

Materials:

Polypropylene (FDA-approved) or PVDF (FDA-approved)

Temperature range:

Type polypropylene 0°C to +80°C, type PVDF: -20°C bis +120°C

Operating pressure:

-1 to 10 bar

Media:

lubricated and unlubricated compressed air, water (also demineralised), neutral liquids and gases, many chemicals (type PVDF: material also suitable for food)

Advantages:

• resistant to a large number of chemicals, hydrolysis resistant,
• cleaned, assembled and packed in clean room (US FED 209D, class 10000 - ISO 14664-1 class 7),
• manufactured free of silicone and oil,
• Material has FDA-approval,
• suitable for use with hoses of PA, PUR, PE, PTFE and PFA

Documents:

More information Less information

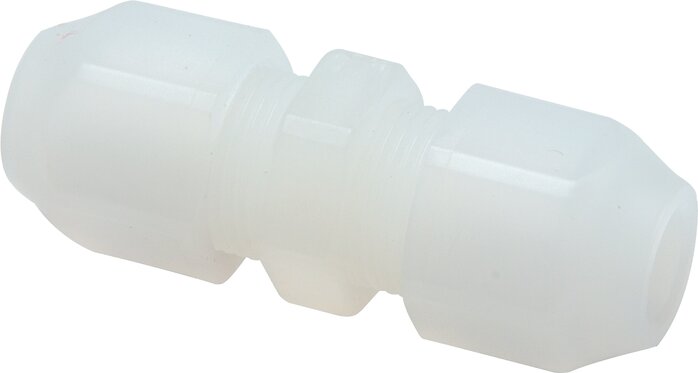

Straight hose connections:
14 of 14 articles
Straight pipe connection 4x2mm, Polypropylene(DCK 2 PP E)
DCK 2 PP E
Straight pipe connection 4x2mm, Polypropylene
€4.64 incl. VAT
Immediately available
Straight pipe connection 6x4mm, Polypropylene(DCK 4 PP E)
DCK 4 PP E
Straight pipe connection 6x4mm, Polypropylene
€5.12 incl. VAT
Immediately available
Straight pipe connection 8x6mm, Polypropylene(DCK 6 PP E)
DCK 6 PP E
Straight pipe connection 8x6mm, Polypropylene
€5.36 incl. VAT
Immediately available
Straight pipe connection 10x8mm, Polypropylene(DCK 8 PP E)
DCK 8 PP E
Straight pipe connection 10x8mm, Polypropylene
€5.83 incl. VAT
Immediately available
Straight pipe connection 12x9mm, Polypropylene(DCK 9 PP E)
DCK 9 PP E
Straight pipe connection 12x9mm, Polypropylene
€5.00 incl. VAT
Immediately available
Straight pipe connection 12x10mm, Polypropylene(DCK 10 PP E)
DCK 10 PP E
Straight pipe connection 12x10mm, Polypropylene
€6.19 incl. VAT
Immediately available
Straight pipe connection 14x12mm, Polypropylene(DCK 12 PP E)
DCK 12 PP E
Straight pipe connection 14x12mm, Polypropylene
€5.59 incl. VAT
Immediately available
Straight pipe connection 4x2mm, PVDF(DCK 2 PVDF E)
DCK 2 PVDF E
Straight pipe connection 4x2mm, PVDF
€12.38 incl. VAT
Immediately available
Straight pipe connection 6x4mm, PVDF(DCK 4 PVDF E)
DCK 4 PVDF E
Straight pipe connection 6x4mm, PVDF
€15.83 incl. VAT
Immediately available
Straight pipe connection 8x6mm, PVDF(DCK 6 PVDF E)
DCK 6 PVDF E
Straight pipe connection 8x6mm, PVDF
€19.87 incl. VAT
Immediately available
Straight pipe connection 10x8mm, PVDF(DCK 8 PVDF E)
DCK 8 PVDF E
Straight pipe connection 10x8mm, PVDF
€24.63 incl. VAT
Immediately available
Straight pipe connection 12x9mm, PVDF(DCK 9 PVDF E)
DCK 9 PVDF E
Straight pipe connection 12x9mm, PVDF
€43.79 incl. VAT
Immediately available
Straight pipe connection 12x10mm, PVDF(DCK 10 PVDF E)
DCK 10 PVDF E
Straight pipe connection 12x10mm, PVDF
€32.73 incl. VAT
Immediately available
Straight pipe connection 14x12mm, PVDF(DCK 12 PVDF E)
DCK 12 PVDF E
Straight pipe connection 14x12mm, PVDF
€50.46 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
