Item group

Straight screwed-on screw connections

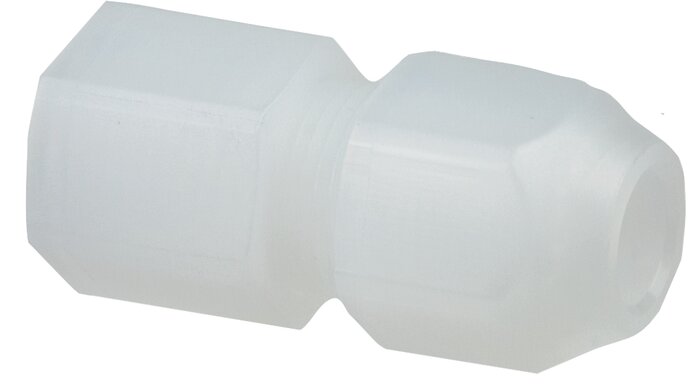

Name: Screw-on screw connection G 1/8"-6x4mm, Polypropylene of Sang-A
Brand: Sang-A
SKU: ACK 184 PP E
Price: 7.26 EUR
Availability: InStock

Zgleden uprizoritev: Gerade Aufschraubverschraubung, Kunststoff

Materials:

Polypropylene (FDA-approved) or PVDF (FDA-approved)

Temperature range:

Type polypropylene 0°C to +80°C, type PVDF: -20°C bis +120°C

Operating pressure:

-1 to 10 bar

Media:

lubricated and unlubricated compressed air, water (also demineralised), neutral liquids and gases, many chemicals (type PVDF: material also suitable for food)

Advantages:

• resistant to a large number of chemicals, hydrolysis resistant,
• cleaned, assembled and packed in clean room (US FED 209D, class 10000 - ISO 14664-1 class 7),
• manufactured free of silicone and oil,
• Material has FDA-approval,
• suitable for use with hoses of PA, PUR, PE, PTFE and PFA

Documents:

More information

Straight screwed-on screw connections:

20 of 32 articles

ACK 184 PP E

Screw-on screw connection G 1/8"-6x4mm, Polypropylene

€7.26 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 1/8"	6x4	0 to +80

ACK 186 PP E

Screw-on screw connection G 1/8"-8x6mm, Polypropylene

€7.50 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 1/8"	8x6	0 to +80

ACK 144 PP E

Screw-on screw connection G 1/4"-6x4mm, Polypropylene

€6.78 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 1/4"	6x4	0 to +80

ACK 146 PP E

Screw-on screw connection G 1/4"-8x6mm, Polypropylene

€7.02 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 1/4"	8x6	0 to +80

ACK 148 PP E

Screw-on screw connection G 1/4"-10x8mm, Polypropylene

€7.38 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 1/4"	10x8	0 to +80

ACK 149 PP E

Screw-on screw connection G 1/4"-12x9mm, Polypropylene

€7.97 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 1/4"	12x9	0 to +80

ACK 1410 PP E

Screw-on screw connection G 1/4"-12x10mm, Polypropylene

€7.97 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 1/4"	12x10	0 to +80

ACK 384 PP E

Screw-on screw connection G 3/8"-6x4mm, Polypropylene

€7.38 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 3/8"	6x4	0 to +80

ACK 386 PP E

Screw-on screw connection G 3/8"-8x6mm, Polypropylene

€7.14 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 3/8"	8x6	0 to +80

ACK 388 PP E

Screw-on screw connection G 3/8"-10x8mm, Polypropylene

€7.38 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 3/8"	10x8	0 to +80

ACK 124 PP E

Screw-on screw connection G 1/2"-6x4mm, Polypropylene

€7.97 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 1/2"	6x4	0 to +80

ACK 126 PP E

Screw-on screw connection G 1/2"-8x6mm, Polypropylene

€8.09 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 1/2"	8x6	0 to +80

ACK 128 PP E

Screw-on screw connection G 1/2"-10x8mm, Polypropylene

€8.33 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 1/2"	10x8	0 to +80

ACK 129 PP E

Screw-on screw connection G 1/2"-12x9mm, Polypropylene

€8.57 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 1/2"	12x9	0 to +80

ACK 1210 PP E

Screw-on screw connection G 1/2"-12x10mm, Polypropylene

€8.57 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 1/2"	12x10	0 to +80

ACK 1212 PP E

Screw-on screw connection G 1/2"-14x12mm, Polypropylene

€8.81 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
Polypropylene	G 1/2"	14x12	0 to +80

ACK 184 PVDF E

Screw-on screw connection G 1/8"-6x4mm, PVDF

€23.92 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
PVDF	G 1/8"	6x4	-20 to +120

ACK 186 PVDF E

Screw-on screw connection G 1/8"-8x6mm, PVDF

€32.84 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
PVDF	G 1/8"	8x6	-20 to +120

ACK 144 PVDF E

Screw-on screw connection G 1/4"-6x4mm, PVDF

€25.23 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
PVDF	G 1/4"	6x4	-20 to +120

ACK 146 PVDF E

Screw-on screw connection G 1/4"-8x6mm, PVDF

€29.75 incl. VAT

Quantity

pcs

Immediately available

Material	Thread internal	Hose diameter (outer x inner) [mm]	Temperature range [°C]
PVDF	G 1/4"	8x6	-20 to +120

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
