Item group

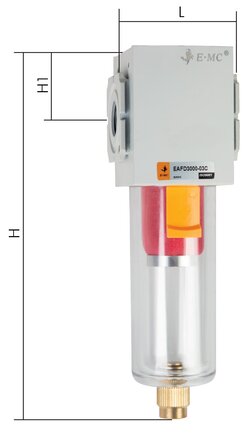

Sub-microfilter - Eco-Line, up to 800 l/min

Application:

Sub-microfilters are used where high demands are placed on the purity of the compressed air. Micro-particles (> 0.01 µm) and oil mist are separated here. We recommend connecting an upstream microfilter to increase the service life.

Materials:

Body: Aluminium, gaskets: NBR, container: Polycarbonate

Temperature range:

-5 to +60 °C

Input pressure:

1,5 to 10 bar

Condensate draining:

semi-automatic**

Dust removal:

> 0,01 µm (99,999 %)

Residual oil content:

0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)

Media:

Compressed air, neutral gases

Scope of delivery:

Sub-microfilter including mounting bracket

Advantages:

•Simple assembly of individual components of a series by means of coupling packages,
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
*at 6 bar inlet pressure and 0.1 bar pressure drop
**as soon as the input pressure falls below the minimum. input pressure, the drain valve opens automatically.

Documents:

More information Less information

Filter items

Max. number of valve spaces
Please select
Corrosion resistant class KBK
Please select
ambient temperature [°C]
Please select
Pneumatic connection 1
Please select
more filters
Sub-microfilter - Eco-Line, up to 800 l/min:
8 of 8 articles
Eco-Line sub-microfilter, G 1/4", drain manual(EAFD 2000-02)
EAFD 2000-02
Eco-Line sub-microfilter, G 1/4", drain manual
€55.54 incl. VAT
Immediately available
Eco-Line sub-microfilter, G 3/8", drain semi-automatic(EAFD 3000-03)
EAFD 3000-03
Eco-Line sub-microfilter, G 3/8", drain semi-automatic
€65.60 incl. VAT
Immediately available
Eco-Line sub-microfilter, G 1/2", drain semi-automatic(EAFD 4000-04)
EAFD 4000-04
Eco-Line sub-microfilter, G 1/2", drain semi-automatic
€96.31 incl. VAT
Immediately available
Eco-Line sub-microfilter, G 3/8", drain automatic(EAFD 3000-03D)
EAFD 3000-03D
Eco-Line sub-microfilter, G 3/8", drain automatic
€76.76 incl. VAT
Immediately available
Eco-Line sub-microfilter, G 1/2", drain automatic(EAFD 4000-04D)
EAFD 4000-04D
Eco-Line sub-microfilter, G 1/2", drain automatic
€104.68 incl. VAT
Immediately available
Eco-Line Submikrofilter, Ersatzfilterelement(EAFD 2000 FIL)
EAFD 2000 FIL
Eco-Line Submikrofilter, Ersatzfilterelement
€17.61 incl. VAT
Immediately available
Eco-Line Submikrofilter, Ersatzfilterelement(EAFD 3000 FIL)
EAFD 3000 FIL
Eco-Line Submikrofilter, Ersatzfilterelement
€31.65 incl. VAT
Immediately available
Eco-Line Submikrofilter, Ersatzfilterelement(EAFD 4000 FIL)
EAFD 4000 FIL
Eco-Line Submikrofilter, Ersatzfilterelement
€40.32 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
