Suction-pressure PU spiral hoses - flame-resistant, anti-static & resistant to hydrolysis, DIN 4102 B1

Description

Materials:

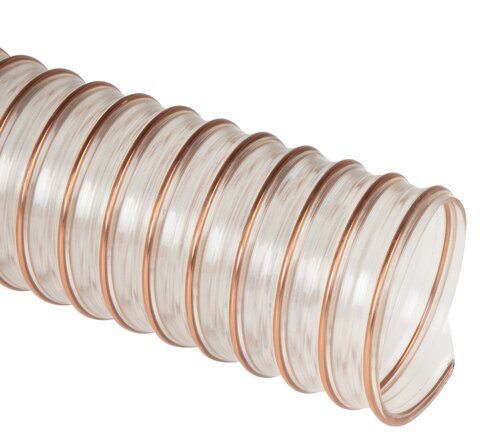

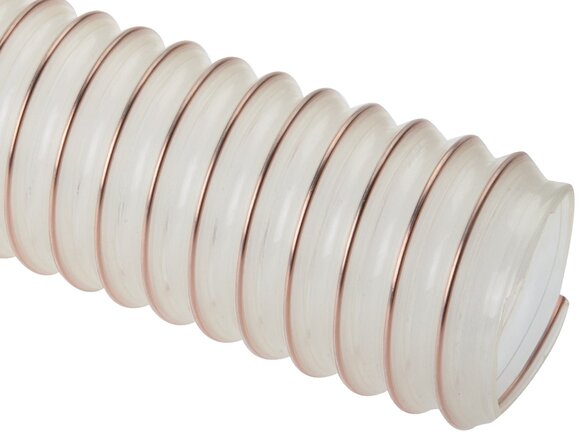

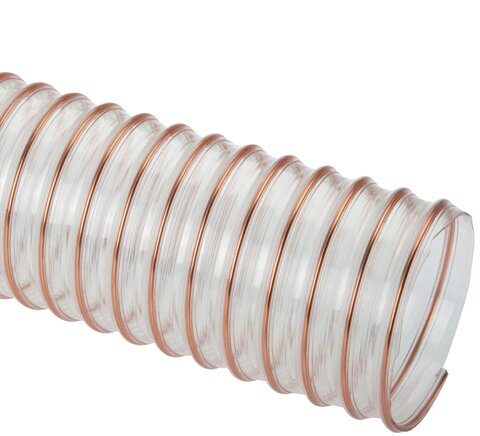

Polyether polyurethane coat with a copper-coated steel wire coil embedded in the wall.

Temperature range:
-40°C to max. +90°C, temporary to +125°C

Properties:
High quality, permanent anti-static PU hose, high tear and abrasion resistance, high elasticity and ageing resistance. No halogen and plasticiser additives, resistant to solvents, oils, grease, wax and petrol to a large extent, bend resistant. The transparency helps to monitor the working processes very effectively.

Field of application:
Suction (industrial suction unit) of gases, chipping, oil mist, paint fog or dust, for passing of granulated material, gravel, sand, dust, wood, grain, cement, or oil, in the chemical industry, paint and lacquer industry, wood industry (also can be used in areas exposed to the risk of fire).

Advantages:
•PU hose is often more abrasion resistant than the common rubber hose, •minor settling of the transported material by relatively smooth inner walls, •not easily flammable to DIN 4102 B1, conforms to TRGS 727, •permanent antistatic (R<10^8 Ohm/mtr.), conductive acc. to BGI 739-2 when earthing the spirals, •hydrolysis and microbe resistant, thus also use for moist media

Optional:
Food-safe according to EU Directive (EC) No.1935 / 2004 and Regulation (EC) No. 10 / 2011, FDA 21 CFR 177.2600 & 178.2010, not antistatic, without B1 approval / TRGS -LE

Find the right item

Version
Design
Hose Ø inside [mm]
Min. bend radius [mm]
Operating pressure [bar]
Roll length [MTR]

Suction-pressure PU spiral hoses - flame-resistant, anti-static & resistant to hydrolysis, DIN 4102 B1: 20 of 96 items

PUR spiral hose, 25mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    25

  • Min. bend radius [mm]

    18

  • Operating pressure [bar]

    -0.30 to 0.60

  • Roll length [MTR]

    10

Immediately available
Inventory check:

Please wait, check is in process...

7,95 €

PUR spiral hose, 30mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    30

  • Min. bend radius [mm]

    21

  • Operating pressure [bar]

    -0.30 to 0.60

  • Roll length [MTR]

    30

Immediately available
Inventory check:

Please wait, check is in process...

8,01 €

PUR spiral hose, 40mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    40

  • Min. bend radius [mm]

    28

  • Operating pressure [bar]

    -0.25 to 0.50

  • Roll length [MTR]

    30

Immediately available
Inventory check:

Please wait, check is in process...

9,67 €

PUR spiral hose, 50mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    50

  • Min. bend radius [mm]

    35

  • Operating pressure [bar]

    -0.20 to 0.40

  • Roll length [MTR]

    15

Immediately available
Inventory check:

Please wait, check is in process...

11,76 €

PUR spiral hose, 60mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    60

  • Min. bend radius [mm]

    42

  • Operating pressure [bar]

    -0.16 to 0.40

  • Roll length [MTR]

    15

Immediately available
Inventory check:

Please wait, check is in process...

18,45 €

PUR spiral hose, 70mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    70

  • Min. bend radius [mm]

    49

  • Operating pressure [bar]

    -0.14 to 0.35

  • Roll length [MTR]

    15

Immediately available
Inventory check:

Please wait, check is in process...

25,28 €

PUR spiral hose, 75mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    75

  • Min. bend radius [mm]

    53

  • Operating pressure [bar]

    -0.10 to 0.30

  • Roll length [MTR]

    15

Immediately available
Inventory check:

Please wait, check is in process...

25,67 €

PUR spiral hose, 80mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    80

  • Min. bend radius [mm]

    56

  • Operating pressure [bar]

    -0.10 to 0.27

  • Roll length [MTR]

    15

Immediately available
Inventory check:

Please wait, check is in process...

25,11 €

PUR spiral hose, 90mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    90

  • Min. bend radius [mm]

    63

  • Operating pressure [bar]

    -0.09 to 0.23

  • Roll length [MTR]

    15

Immediately available
Inventory check:

Please wait, check is in process...

28,25 €

PUR spiral hose, 100mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    100

  • Min. bend radius [mm]

    70

  • Operating pressure [bar]

    -0.09 to 0.20

  • Roll length [MTR]

    15

Immediately available
Inventory check:

Please wait, check is in process...

30,46 €

PUR spiral hose, 120mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    120

  • Min. bend radius [mm]

    85

  • Operating pressure [bar]

    -0.08 to 0.19

  • Roll length [MTR]

    15

Immediately available
Inventory check:

Please wait, check is in process...

36,99 €

PUR spiral hose, 125mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    125

  • Min. bend radius [mm]

    88

  • Operating pressure [bar]

    -0.08 to 0.19

  • Roll length [MTR]

    15

Immediately available
Inventory check:

Please wait, check is in process...

39,50 €

PUR spiral hose, 140mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    140

  • Min. bend radius [mm]

    95

  • Operating pressure [bar]

    -0.07 to 0.15

  • Roll length [MTR]

    15

Immediately available
Inventory check:

Please wait, check is in process...

50,49 €

PUR spiral hose, 150mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    150

  • Min. bend radius [mm]

    105

  • Operating pressure [bar]

    -0.06 to 0.11

  • Roll length [MTR]

    15

Immediately available
Inventory check:

Please wait, check is in process...

48,41 €

PUR spiral hose, 160mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    160

  • Min. bend radius [mm]

    112

  • Operating pressure [bar]

    -0.06 to 0.12

  • Roll length [MTR]

    10

Immediately available
Inventory check:

Please wait, check is in process...

54,49 €

PUR spiral hose, 175mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    175

  • Min. bend radius [mm]

    123

  • Operating pressure [bar]

    -0.05 to 0.10

  • Roll length [MTR]

    10

Immediately available
Inventory check:

Please wait, check is in process...

57,85 €

PUR spiral hose, 200mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    200

  • Min. bend radius [mm]

    140

  • Operating pressure [bar]

    -0.05 to 0.08

  • Roll length [MTR]

    10

Immediately available
Inventory check:

Please wait, check is in process...

78,87 €

PUR spiral hose, 250mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    250

  • Min. bend radius [mm]

    175

  • Operating pressure [bar]

    -0.04 to 0.05

  • Roll length [MTR]

    10

Immediately available
Inventory check:

Please wait, check is in process...

93,98 €

PUR spiral hose, 300mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    300

  • Min. bend radius [mm]

    210

  • Operating pressure [bar]

    -0.03 to 0.03

  • Roll length [MTR]

    10

Immediately available
Inventory check:

Please wait, check is in process...

111,62 €

PUR spiral hose, 350mm, light, Standard
  • Version

    Standard

  • Design

    light

  • Hose Ø inside [mm]

    350

  • Min. bend radius [mm]

    245

  • Operating pressure [bar]

    -0.02 to 0.02

  • Roll length [MTR]

    10

Immediately available
Inventory check:

Please wait, check is in process...

136,97 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
