Item group

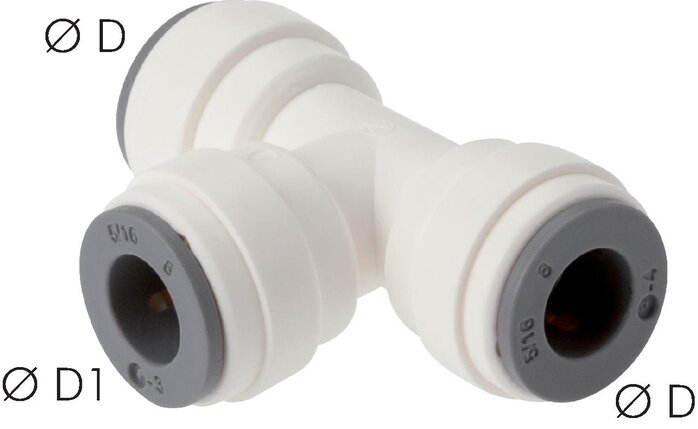

T-push in connectors (also reducing), LE (inch)

Materials:

Body and sleeve: POM (FDA 21 CFR 177.2470, NSF/ANSI 51 & 61), retaining claw: stainless steel, seals: EPDM (FDA 21 CFR 177.2600), lubricant: Silicone grease (NSF/ANSI 51 & 61)

Temperature range:

0 to +65 °C

Operating pressure:

-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*

Media:

unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals

Approvals:

Materials according to FDA & NSF/ANSI

Advantages:

•available for metric and imperial hoses, G thread,
•R-thread and NPT-thread available,
•compatible with many other manufacturers
*For temperatures >20°C, calculate operating pressure with this correction factor: 30°C: 0.88 - 40°C: 0.77 - 50°C: 0.69 - 65°C: 0.63, example: 50°C, operating pressure = 16 bar * 0.69 = 11 bar

Documents:

More information Less information

Filter items

D [mm]
Please select
A
Please select
Emax [mm]
Please select
Temperature range [°C]
Please select
more filters
T-push in connectors (also reducing), LE (inch):
13 of 13 articles
T-push in fitting5/32" (3,97 mm)-5/32" (3,97 mm), IQS-LE (EPDM-seal)(IQST 5/32 LE)
IQST 5/32 LE
T-push in fitting5/32" (3,97 mm)-5/32" (3,97 mm), IQS-LE (EPDM-seal)
€3.05 incl. VAT
Immediately available
T-push in fitting3/16" (4,76 mm)-3/16" (4,76 mm), IQS-LE (EPDM-seal)(IQST 3/16 LE)
IQST 3/16 LE
T-push in fitting3/16" (4,76 mm)-3/16" (4,76 mm), IQS-LE (EPDM-seal)
€3.30 incl. VAT
Immediately available
T-push in fitting1/4" (6,35 mm)-1/4" (6,35 mm), IQS-LE (EPDM-seal)(IQST 1/4 LE)
IQST 1/4 LE
T-push in fitting1/4" (6,35 mm)-1/4" (6,35 mm), IQS-LE (EPDM-seal)
€3.30 incl. VAT
Immediately available
T-push in fitting1/4" (6,35 mm)-5/16" (7,94 mm), IQS-LE (EPDM-seal)(IQST 1/4-5/16-1/4 LE)
IQST 1/4-5/16-1/4 LE
T-push in fitting1/4" (6,35 mm)-5/16" (7,94 mm), IQS-LE (EPDM-seal)
€3.42 incl. VAT
Immediately available
T-push in fitting1/4" (6,35 mm)-3/8" (9,52 mm), IQS-LE (EPDM-seal)(IQST 1/4-3/8-1/4 LE)
IQST 1/4-3/8-1/4 LE
T-push in fitting1/4" (6,35 mm)-3/8" (9,52 mm), IQS-LE (EPDM-seal)
€3.56 incl. VAT
Immediately available
T-push in fitting5/16" (7,94 mm)-1/4" (6,35 mm), IQS-LE (EPDM-seal)(IQST 5/16-1/4-5/16LE)
IQST 5/16-1/4-5/16LE
T-push in fitting5/16" (7,94 mm)-1/4" (6,35 mm), IQS-LE (EPDM-seal)
€3.56 incl. VAT
Immediately available
T-push in fitting5/16" (7,94 mm)-5/16" (7,94 mm), IQS-LE (EPDM-seal)(IQST 5/16 LE)
IQST 5/16 LE
T-push in fitting5/16" (7,94 mm)-5/16" (7,94 mm), IQS-LE (EPDM-seal)
€3.56 incl. VAT
Immediately available
T-push in fitting5/16" (7,94 mm)-3/8" (9,52 mm), IQS-LE (EPDM-seal)(IQST 5/16-3/8-5/16LE)
IQST 5/16-3/8-5/16LE
T-push in fitting5/16" (7,94 mm)-3/8" (9,52 mm), IQS-LE (EPDM-seal)
€3.81 incl. VAT
Immediately available
T-push in fitting3/8" (9,52 mm)-1/4" (6,35 mm), IQS-LE (EPDM-seal)(IQST 3/8-1/4-3/8 LE)
IQST 3/8-1/4-3/8 LE
T-push in fitting3/8" (9,52 mm)-1/4" (6,35 mm), IQS-LE (EPDM-seal)
€3.81 incl. VAT
Immediately available
T-push in fitting3/8" (9,52 mm)-5/16" (7,94 mm), IQS-LE (EPDM-seal)(IQST 3/8-5/16-3/8 LE)
IQST 3/8-5/16-3/8 LE
T-push in fitting3/8" (9,52 mm)-5/16" (7,94 mm), IQS-LE (EPDM-seal)
€3.94 incl. VAT
Immediately available
T-push in fitting3/8" (9,52 mm)-3/8" (9,52 mm), IQS-LE (EPDM-seal)(IQST 3/8 LE)
IQST 3/8 LE
T-push in fitting3/8" (9,52 mm)-3/8" (9,52 mm), IQS-LE (EPDM-seal)
€4.06 incl. VAT
Immediately available
T-push in fitting1/2" (12,7 mm)-3/8" (9,52 mm), IQS-LE (EPDM-seal)(IQST 1/2-3/8-1/2 LE)
IQST 1/2-3/8-1/2 LE
T-push in fitting1/2" (12,7 mm)-3/8" (9,52 mm), IQS-LE (EPDM-seal)
€4.31 incl. VAT
Immediately available
T-push in fitting1/2" (12,7 mm)-1/2" (12,7 mm), IQS-LE (EPDM-seal)(IQST 1/2 LE)
IQST 1/2 LE
T-push in fitting1/2" (12,7 mm)-1/2" (12,7 mm), IQS-LE (EPDM-seal)
€4.45 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
