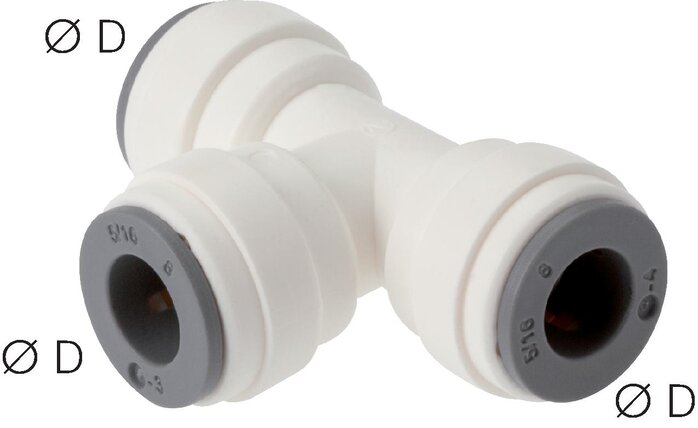

T-push in connectors, LE (metric)

Description

Materials:
Body and sleeve: POM (FDA approved), holding claw: Stainless steel, seals: EPDM (FDA certified)

Temperature range:
0°C bis +65°C

Operating pressure:
-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*

Media:
unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals

Approvals:
NSF / ANSI 61, materials acc. to FDA

Advantages:
•available for metric and imperial hoses, G thread, •R-thread and NPT-thread available, •compatible with many other manufacturers

*For temperatures >20°C, calculate operating pressure with this correction factor: 30°C: 0.88 - 40°C: 0.77 - 50°C: 0.69 - 65°C: 0.63, example: 50°C, operating pressure = 16 bar * 0.69 = 11 bar

Find the right item

D [mm]
Operating pressure [bar]

T-push in connectors, LE (metric): 6 of 6 items

T-push in fitting4mm, IQS-LE (EPDM-seal)
  • D [mm]

    4

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

2,33 €

T-push in fitting5mm, IQS-LE (EPDM-seal)
  • D [mm]

    5

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

2,52 €

T-push in fitting6mm, IQS-LE (EPDM-seal)
  • D [mm]

    6

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

2,62 €

T-push in fitting8mm, IQS-LE (EPDM-seal)
  • D [mm]

    8

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

2,72 €

T-push in fitting10mm, IQS-LE (EPDM-seal)
  • D [mm]

    10

  • Operating pressure [bar]

    -0,95 bis 11

Immediately available

3,11 €

T-push in fitting12mm, IQS-LE (EPDM-seal)
  • D [mm]

    12

  • Operating pressure [bar]

    -0,95 bis 11

Immediately available

3,88 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
