Item group

Thread extensions and adapters for grease nipple, PN 100

Wzorowy interpretacja: Przedluzenie gwintu smarowniczki

Documents:

Catalogue page Atlas 9 (Page 1054) (PDF)

More information

Thread extensions and adapters for grease nipple, PN 100:

20 of 54 articles

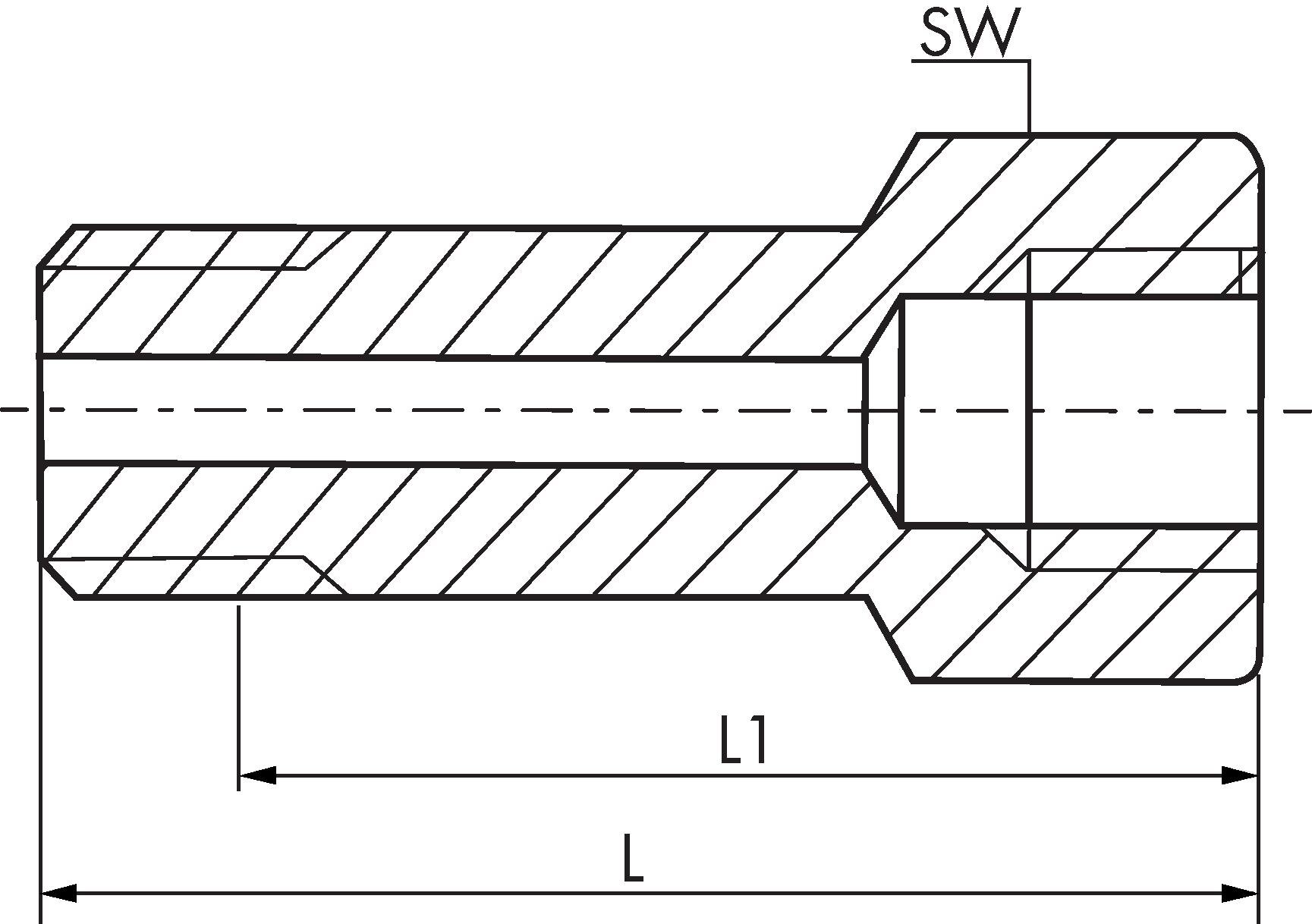

SNRN M8X1-14

Adapter, straight (lubricating nipple) M 8x1 (conical) MT - Rp 1/4" FT

€8.71 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Adapter, straight	M 8x1 (taper)	Rp 1/4"

SNRN M10X1-M8X1

Adapter, straight (lubricating nipple) M 10x1 (conical) MT - M 8x1 FT

€5.33 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Adapter, straight	M 10x1 (taper)	M 8x1

SNRN M10X1-18

Adapter, straight (lubricating nipple) M 10x1 (conical) MT - Rp 1/8" FT

€6.18 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Adapter, straight	M 10x1 (taper)	Rp 1/8"

SNRN M10X1-14

Adapter, straight (lubricating nipple) M 10x1 (conical) MT - Rp 1/4" FT

€8.71 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Adapter, straight	M 10x1 (taper)	Rp 1/4"

SNRN M10X1,5-M10X1

Adapter, straight (lubricating nipple) M 10 (conical) MT - M 10x1 FT

€9.32 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Adapter, straight	M 10 (conical)	M 10x1

SNRN 18-M8X1

Adapter, straight (lubricating nipple) R 1/8" MT - M 8x1 FT

€6.18 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Adapter, straight	R 1/8"	M 8x1

SNRN 18-M10X1

Adapter, straight (lubricating nipple) R 1/8" MT - M 10x1 FT

€6.18 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Adapter, straight	R 1/8"	M 10x1

SNRN 18-14

Adapter, straight (lubricating nipple) R 1/8" MT - Rp 1/4" FT

€8.71 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Adapter, straight	R 1/8"	Rp 1/4"

SNRN 14-M10X1

Adapter, straight (lubricating nipple) R 1/4" MT - M 10x1 FT

€11.23 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Adapter, straight	R 1/4"	M 10x1

SNRN 14-18

Adapter, straight (lubricating nipple) R 1/4" MT - Rp 1/8" FT

€11.23 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Adapter, straight	R 1/4"	Rp 1/8"

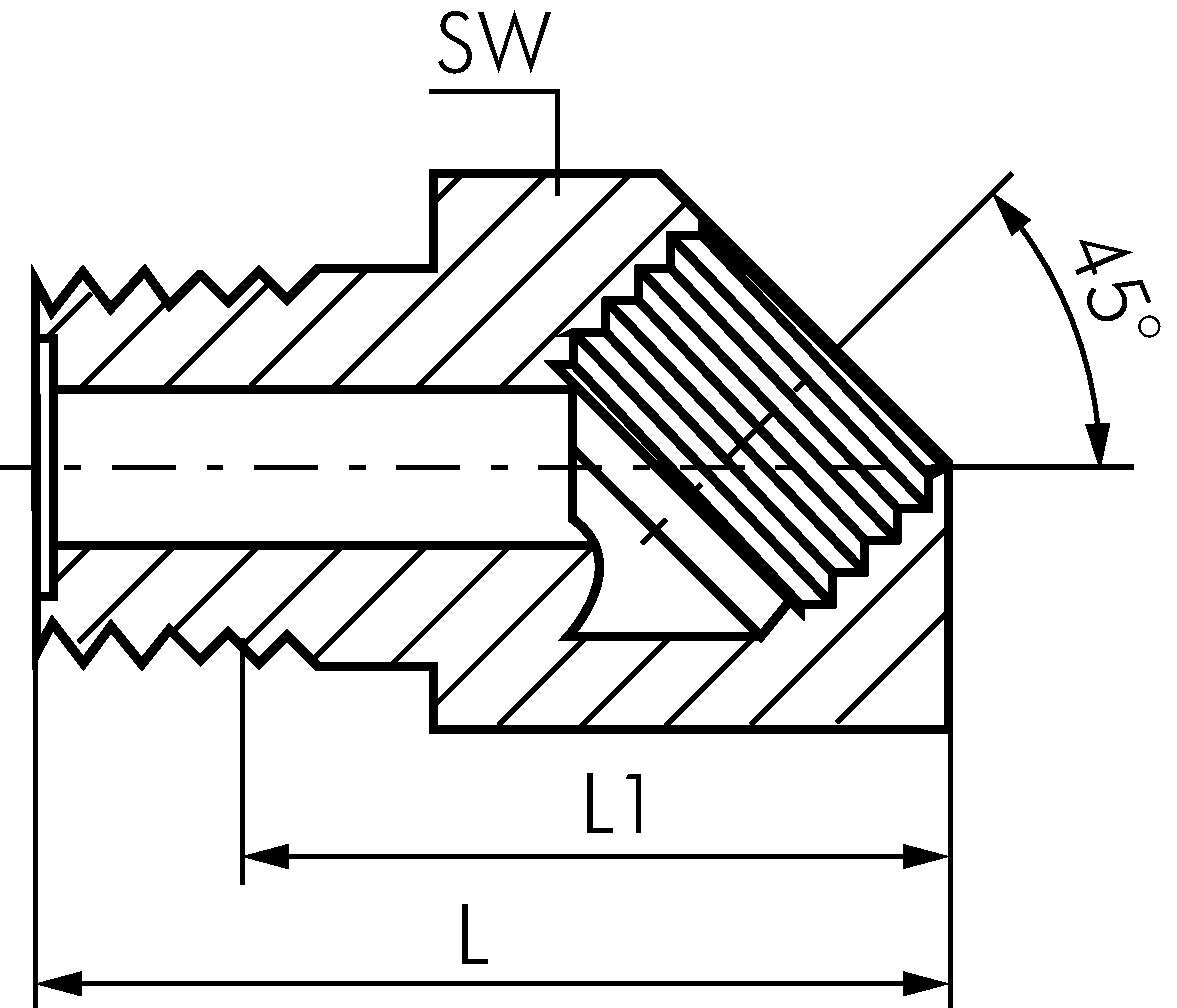

SNW45 M6X1-M8X1

Angle piece 45° (lubricating nipple) M 6 (conical) MT - M 8x1 FT

€8.12 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Angle piece 45°	M 6 (conical)	M 8x1

SNW45 M8X1

Angle piece 45° (lubricating nipple) M 8x1 (conical) MT - M 8x1 FT

€8.12 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Angle piece 45°	M 8x1 (taper)	M 8x1

SNW45 M10X1

Angle piece 45° (lubricating nipple) M 10x1 (conical) MT - M 10x1 FT

€7.70 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Angle piece 45°	M 10x1 (taper)	M 10x1

SNW45 18

Angle piece 45° (lubricating nipple) R 1/8" MT - Rp 1/8" FT

€8.12 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Angle piece 45°	R 1/8"	Rp 1/8"

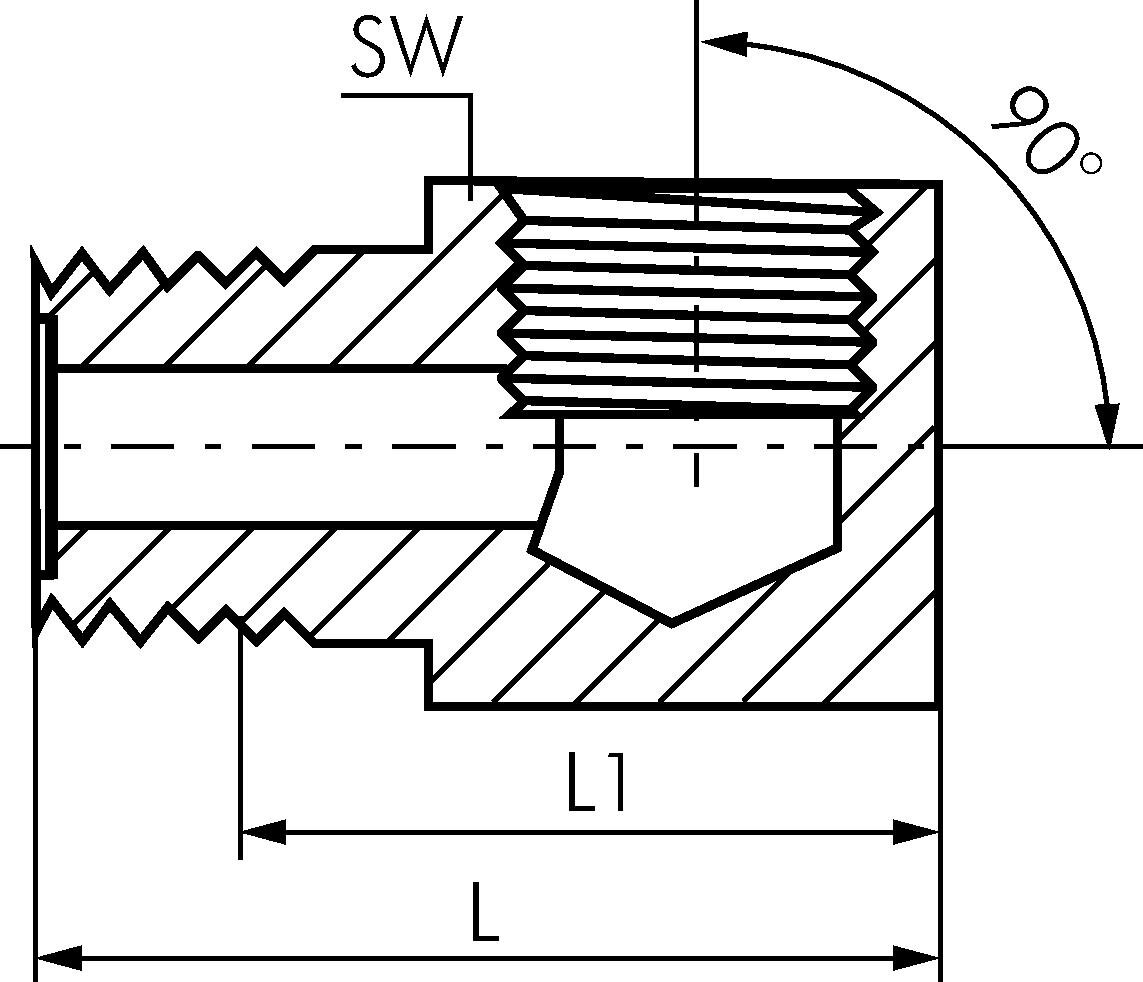

SNW M6X1

Angle piece 90° (lubricating nipple) M 6 (conical) MT - M 6 FT

€8.47 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Angle piece 90°	M 6 (conical)	M 6

SNW M6X1-M8X1

Angle piece 90° (lubricating nipple) M 6 (conical) MT - M 8x1 FT

€8.47 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Angle piece 90°	M 6 (conical)	M 8x1

SNW M6X1-M10X1

Angle piece 90° (lubricating nipple) M 6 (conical) MT - M 10x1 FT

€9.94 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Angle piece 90°	M 6 (conical)	M 10x1

SNW M8X1

Angle piece 90° (lubricating nipple) M 8x1 (conical) MT - M 8x1 FT

€8.47 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Angle piece 90°	M 8x1 (taper)	M 8x1

SNW M10X1

Angle piece 90° (lubricating nipple) M 10x1 (conical) MT - M 10x1 FT

€8.26 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Angle piece 90°	M 10x1 (taper)	M 10x1

SNW 18

Angle piece 90° (lubricating nipple) R 1/8" MT - Rp 1/8" FT

€9.17 incl. VAT

Quantity

pcs

Immediately available

Material	Version	Thread external	Thread internal
Zinc plated steel	Angle piece 90°	R 1/8"	Rp 1/8"

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
