Item group

Transport device rollers, 50 - 450 kg

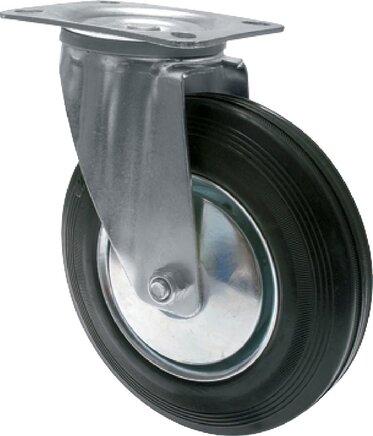

Exemplary representation: Transport equipment castor (swivel castor)

Properties:

Durable solid rubber tyres for light to medium loading. Silent running, protects cargo. Galvanized steel sheet housing, double ball ring and seals in the yoke. Wheels with solid black rubber tyres on steel sheet rims.

Bearing type:

Roller cage bearing with thread guard (Ø 225 - 400: without thread guard)

Documents:

Catalogue page Atlas 9 (Page 1117) (PDF)

More information

Transport device rollers, 50 - 450 kg:

20 of 33 articles

Transport device roller, 80mm, Swivel castor(RO 80 TG L)

RO 80 TG L

Transport device roller, 80mm, Swivel castor

€12.86 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
swivel castor	80	50	25

Transport device roller, 100mm, Swivel castor(RO 100 TG L)

RO 100 TG L

Transport device roller, 100mm, Swivel castor

€14.95 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
swivel castor	100	70	30

Transport device roller, 125mm, Swivel castor(RO 125 TG L)

RO 125 TG L

Transport device roller, 125mm, Swivel castor

€15.87 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
swivel castor	125	100	37

Transport device roller, 140mm, Swivel castor(RO 140 TG L)

RO 140 TG L

Transport device roller, 140mm, Swivel castor

€19.48 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
swivel castor	140	115	37

Transport device roller, 160mm, Swivel castor(RO 160 TG L)

RO 160 TG L

Transport device roller, 160mm, Swivel castor

€34.18 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
swivel castor	160	135	40

Transport device roller, 180mm, Swivel castor(RO 180 TG L)

RO 180 TG L

Transport device roller, 180mm, Swivel castor

€39.94 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
swivel castor	180	170	45

Transport device roller, 200mm, Swivel castor(RO 200 TG L)

RO 200 TG L

Transport device roller, 200mm, Swivel castor

€42.13 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
swivel castor	200	205	50

Transport device roller, 225mm, Swivel castor(RO 225 TG L)

RO 225 TG L

Transport device roller, 225mm, Swivel castor

€97.78 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
swivel castor	225	250	55

Transport device roller, 250mm, Swivel castor(RO 250 TG L)

RO 250 TG L

Transport device roller, 250mm, Swivel castor

€105.32 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
swivel castor	250	295	60

Transport device roller, 280mm, Swivel castor(RO 280 TG L)

RO 280 TG L

Transport device roller, 280mm, Swivel castor

€280.80 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
swivel castor	280	385	70

Transport device roller, 400mm, Swivel castor(RO 400 TG L)

RO 400 TG L

Transport device roller, 400mm, Swivel castor

€591.99 incl. VAT

Quantity

pcs

Not in stock

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
swivel castor	400	450	75

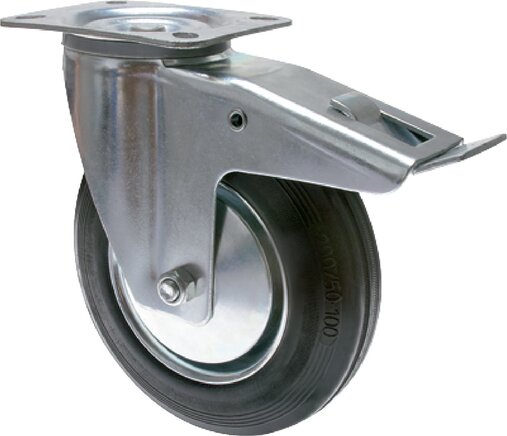

Transport device roller, 80mm, Swivel castor with total brakes(RO 80 TG LF)

RO 80 TG LF

Transport device roller, 80mm, Swivel castor with total brakes

€25.66 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
Swivel castor with total brake	80	50	25

Transport device roller, 100mm, Swivel castor with total brakes(RO 100 TG LF)

RO 100 TG LF

Transport device roller, 100mm, Swivel castor with total brakes

€27.02 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
Swivel castor with total brake	100	70	30

Transport device roller, 125mm, Swivel castor with total brakes(RO 125 TG LF)

RO 125 TG LF

Transport device roller, 125mm, Swivel castor with total brakes

€29.07 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
Swivel castor with total brake	125	100	37

Transport device roller, 140mm, Swivel castor with total brakes(RO 140 TG LF)

RO 140 TG LF

Transport device roller, 140mm, Swivel castor with total brakes

€33.15 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
Swivel castor with total brake	140	115	37

Transport device roller, 160mm, Swivel castor with total brakes(RO 160 TG LF)

RO 160 TG LF

Transport device roller, 160mm, Swivel castor with total brakes

€42.15 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
Swivel castor with total brake	160	135	40

Transport device roller, 180mm, Swivel castor with total brakes(RO 180 TG LF)

RO 180 TG LF

Transport device roller, 180mm, Swivel castor with total brakes

€51.96 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
Swivel castor with total brake	180	170	45

Transport device roller, 200mm, Swivel castor with total brakes(RO 200 TG LF)

RO 200 TG LF

Transport device roller, 200mm, Swivel castor with total brakes

€53.48 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
Swivel castor with total brake	200	205	50

Transport device roller, 225mm, Swivel castor with total brakes(RO 225 TG LF)

RO 225 TG LF

Transport device roller, 225mm, Swivel castor with total brakes

€132.21 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
Swivel castor with total brake	225	250	55

Transport device roller, 250mm, Swivel castor with total brakes(RO 250 TG LF)

RO 250 TG LF

Transport device roller, 250mm, Swivel castor with total brakes

€133.49 incl. VAT

Quantity

pcs

Immediately available

Version	Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]
Swivel castor with total brake	250	295	60

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
