Item group

Transport devicer rollers - wheels, 50 -475 kg

Name: Wheel for transport device roller, 80mm
Brand: Landefeld
SKU: RO 80 TG
Price: 5.69 EUR
Availability: InStock

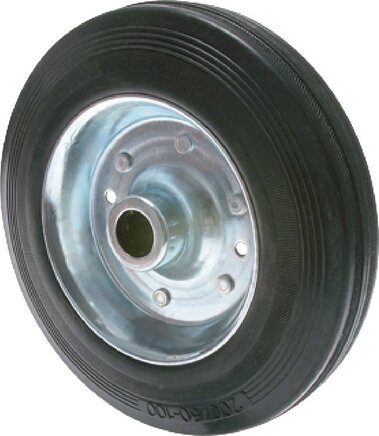

Illustrazione esemplare: Ruota da trasporto

Properties:

Durable solid rubber tyres on rims of galvanized steel-sheet, for light to medium loading. Silent running, protects cargo.

Bearing type:

Roller cage bearing

*Running surface crowned

Documents:

Catalogue page Atlas 9 (Page 1117) (PDF)

More information

Transport devicer rollers - wheels, 50 -475 kg:

14 of 14 articles

RO 80 TG

Wheel for transport device roller, 80mm

€5.69 incl. VAT

Quantity

pcs

Immediately available

Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]	Wheel borehole [mm]
80	50	25	12

RO 100 TG

Wheel for transport device roller, 100mm

€9.07 incl. VAT

Quantity

pcs

Immediately available

Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]	Wheel borehole [mm]
100	70	30	12

RO 125 TG

Wheel for transport device roller, 125mm

€11.33 incl. VAT

Quantity

pcs

Immediately available

Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]	Wheel borehole [mm]
125	100	37	15

RO 140 TG

Wheel for transport device roller, 140mm

€14.73 incl. VAT

Quantity

pcs

Immediately available

Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]	Wheel borehole [mm]
140	115	37	15

RO 160 TG

Wheel for transport device roller, 160mm

€20.38 incl. VAT

Quantity

pcs

Immediately available

Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]	Wheel borehole [mm]
160	135	40	20

RO 180 TG

Wheel for transport device roller, 180mm

€22.65 incl. VAT

Quantity

pcs

Immediately available

Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]	Wheel borehole [mm]
180	170	45	20

RO 181 TG

Wheel for transport device roller, 180mm

€54.62 incl. VAT

Quantity

pcs

Immediately available

Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]	Wheel borehole [mm]
180	200	80	20

RO 200 TG

Wheel for transport device roller, 200mm

€28.26 incl. VAT

Quantity

pcs

Immediately available

Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]	Wheel borehole [mm]
200	205	50	20

RO 225 TG

Wheel for transport device roller, 225mm

€65.52 incl. VAT

Quantity

pcs

Immediately available

Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]	Wheel borehole [mm]
225	250	55	20

RO 250 TG

Wheel for transport device roller, 250mm

€72.79 incl. VAT

Quantity

pcs

Immediately available

Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]	Wheel borehole [mm]
250	295	60	25

RO 260 TG *

Wheel for transport device roller, 260mm

€81.19 incl. VAT

Quantity

pcs

Immediately available

Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]	Wheel borehole [mm]
260	200	85	20

RO 280 TG

Wheel for transport device roller, 280mm

€105.58 incl. VAT

Quantity

pcs

Immediately available

Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]	Wheel borehole [mm]
280	385	70	30

RO 380 TG *

Wheel for transport device roller, 380mm

€106.64 incl. VAT

Quantity

pcs

Immediately available

Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]	Wheel borehole [mm]
380	350	80	25

RO 400 TG *

Wheel for transport device roller, 400mm

€152.57 incl. VAT

Quantity

pcs

Immediately available

Wheel diameter (±3%) [mm]	Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)]	Wheel width [mm]	Wheel borehole [mm]
400	475	75	25

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
