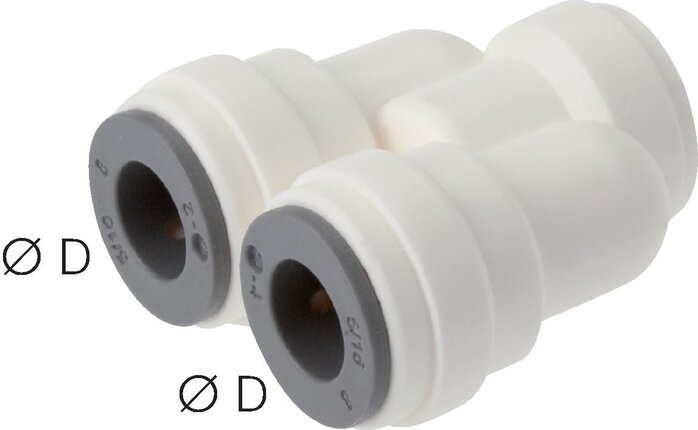

U-push in connector, LE (metric)


Body and sleeve: POM (FDA approved), holding claw: Stainless steel, seals: EPDM (FDA certified)

Temperature range:
0°C bis +65°C

Operating pressure:
-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*

unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals

NSF / ANSI 61, materials acc. to FDA

•available for metric and imperial hoses, G thread, •R-thread and NPT-thread available, •compatible with many other manufacturers

*For temperatures >20°C, calculate operating pressure with this correction factor: 30°C: 0.88 - 40°C: 0.77 - 50°C: 0.69 - 65°C: 0.63, example: 50°C, operating pressure = 16 bar * 0.69 = 11 bar

U-push in connector, LE (metric): 1 of 1 items

Immediately available
Inventory check:

Please wait, check is in process...

2,43 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
