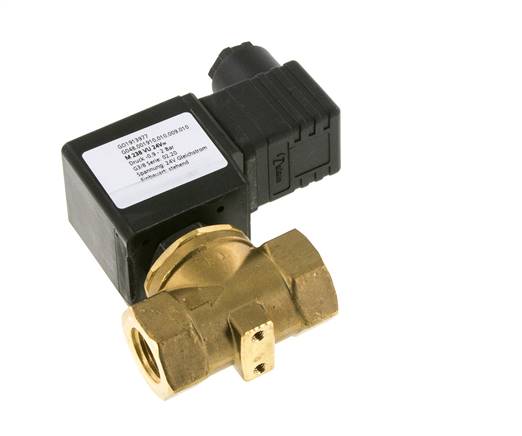

2/2-way vacuum valve (NC), G 3/8", -0,9 to 2bar, 230 V AC
Item number:
M 238 VU 230V
Item description
Materials:
Body: brass, internal parts: 1.4104, seal: NBR (G 1/4": FKM)
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
neutral, gaseous and liquid media, vacuum (max. -0.9 bar)
Installation position:
with upright magnets (G 1/4": any)
Control voltages:
24 V DC, 230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3, G 1": Screw terminals)
Pressure input:
P
Vacuum inlet:
A
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Body: brass, internal parts: 1.4104, seal: NBR (G 1/4": FKM)
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
neutral, gaseous and liquid media, vacuum (max. -0.9 bar)
Installation position:
with upright magnets (G 1/4": any)
Control voltages:
24 V DC, 230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3, G 1": Screw terminals)
Pressure input:
P
Vacuum inlet:
A
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Properties
| Control voltage | 230 V AC |
| function | normally closed (NC) |
| Thread | G 3/8" |
| Operating pressure [bar] | -0.9 to 2 |
| DN [mm] | 10 |
| Suction performance [m³/h] | 24 |
| Suction performance [l/min] | 400 |
| Kv value* [l/min] | 35 |
| L [mm] | 54 |
| Power consumption (AC) [VA] | 24 |
| Structural shape solenoid coil | B |
| Spare solenoid coil | MAG B 230V |
Further information on M238VU230V
| Weight | 600 g / pcs |
| GTIN | 4050571477264 |
| Customs duty number | 84812090 |
