Item group

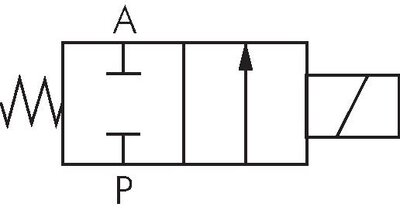

2/2-way vacuum valves - directly controlled, up to 2500 l/min
YouTube videos:
Materials:
Body: brass, internal parts: 1.4104, seal: NBR (G 1/4": FKM)
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
neutral, gaseous and liquid media, vacuum (max. -0.9 bar)
Installation position:
with upright magnets (G 1/4": any)
Control voltages:
24 V DC, 230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3, G 1": Screw terminals)
Pressure input:
P
Vacuum inlet:
A
Information:
These valves are always supplied with a solenoid coil and a connector plug.
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge
Documents:
More information
Filter items
more filters
2/2-way vacuum valves - directly controlled, up to 2500 l/min:
11 of 11 articles

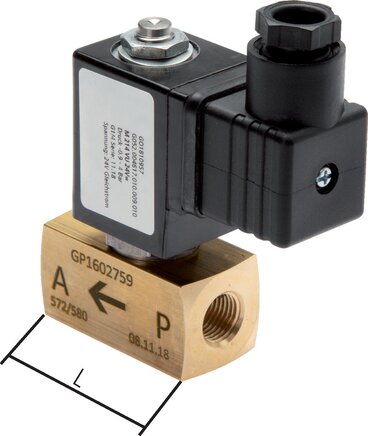

M 214 VU 24V=
2/2-way vacuum valve (NC), G 1/4", -0,9 to 5bar, 24 V DC
€213.36
incl. VAT
€213.36
incl. VAT
M 238 VU 24V=
2/2-way vacuum valve (NC), G 3/8", -0,9 to 2bar, 24 V DC
€290.42
incl. VAT
€290.42
incl. VAT
M 212 VU 24V=
2/2-way vacuum valve (NC), G 1/2", -0,9 to 2bar, 24 V DC
€290.42
incl. VAT
€290.42
incl. VAT
M 234 VU 24V=
2/2-way vacuum valve (NC), G 3/4", -0,9 to 1bar, 24 V DC
€1,020.45
incl. VAT
deliverable again in ⌀ 6 weeks
€1,020.45
incl. VAT
M 210 VU 24V=
2/2-way vacuum valve (NC), G 1", -0,9 to 1bar, 24 V DC
€1,708.59
incl. VAT
M 210 VU 230V
2/2-way vacuum valve (NC), G 1", -0,9 to 1bar, 230 V AC
€1,708.59
incl. VAT
M 21120 VU 24V=
2/2-way vacuum valve (NC), G 1-1/2", -0,9 to 10bar, 24 V DC
€1,677.01
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
