Item description
Materials:
Body: brass (DN 25 & DN 40: red bronze), internal parts: brass / stainless steel, seal: NBR (types G 1/8" & G 1/4": FKM)
Temperature range:
0°C to max. +80°C (G 1/8" & G 1/4": -10°C to max. +130°C), environment max. +50 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, heating oil, other media on request
Installation position:
any (G 1/8" & G 1/4": standing magnet)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
Body: brass (DN 25 & DN 40: red bronze), internal parts: brass / stainless steel, seal: NBR (types G 1/8" & G 1/4": FKM)
Temperature range:
0°C to max. +80°C (G 1/8" & G 1/4": -10°C to max. +130°C), environment max. +50 °C
Media:
Compressed air, neutral gases, water, neutral low-viscosity media, heating oil, other media on request
Installation position:
any (G 1/8" & G 1/4": standing magnet)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).

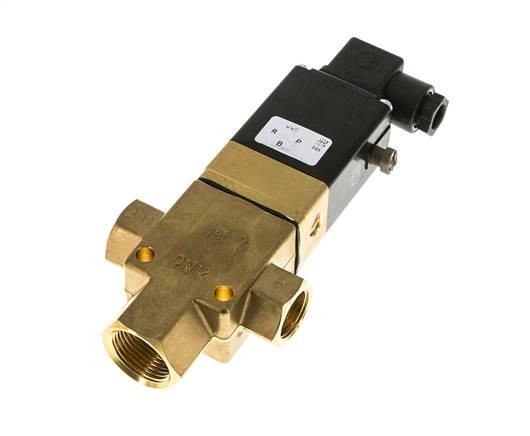

Properties
| Control voltage | 24 V AC |
| function | normally closed (NC) |
| Thread (2x) | G 1/2" |
| Thread exhaust air | G 3/4" (female thread) |
| Operating pressure [bar] | 1 - 16 |
| DN [mm] | 12 |
| L [mm] | 76 |
| Kv value* [l/min] | 43 |
| Power consumption (AC) [VA] | 14 |
| Temperature range [°C] | 0 to +80 |
Further information on M31224VAC
| Weight | 1,2 kg / pcs |
| GTIN | 4050571477905 |
| Customs duty number | 84818079 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 716) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge, **Warning: Pressure input at connection 2, venting over connection 3
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
