Item group

3/2-way solenoid valves from brass

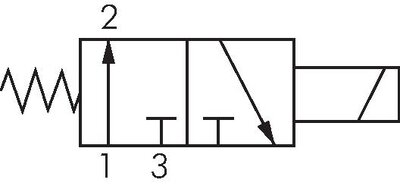

Exemplary representation: 3/2-directional solenoid valve (G 1/8" & G 1/4") Exemplary representation: 3/2-directional solenoid valve (G 1/2" - G 1-1/2") Schematic symbol: 3/2-way solenoid valve, closed when de-energised (NC) Schematic symbol: 3/2-way solenoid valve, open when de-energised (NO)

Materials:

Body: brass (DN 25 & DN 40: red bronze), internal parts: brass / stainless steel, seal: NBR (types G 1/8" & G 1/4": FKM)

Temperature range:

0°C to max. +80°C (G 1/8" and G 1/4": -10°C to max. +130°C), environment max. +50°C

Media:

Compressed air, neutral gases, water, neutral low-viscosity media, heating oil, other media on request

Installation position:

any (G 1/8" and G 1/4": upright magnet)

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Protection class:

IP 65 (plug size 3)

Information:

These valves are always supplied with a solenoid coil and a connector plug.

Warning:

For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
*Water flow rate at +20°C, 1 bar pressure at the valve inlet, free discharge, **Warning: Pressure input at connection 2, venting over connection 3

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 716) atlas9_seiten/716.pdf
    The solenoid valve Forced or servo-controlled?
