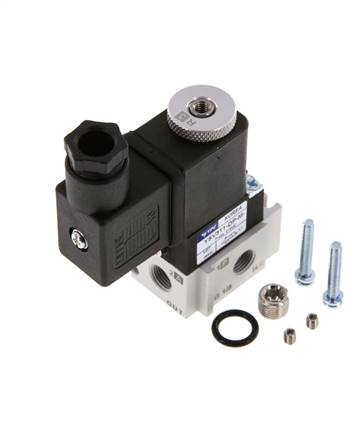

3/2-way solenoid valve, G 1/8", closed (NC), 230 V AC
Item number:
YSV311 DPSC-A2
Item description
Materials:
Body: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 20 ms
Nominal width:
1,5 mm
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
Scope of delivery:
Valve incl. interlinking accessories and locking screw (for individual use of the valve).
Advantages:
•the seal and screw included in the delivery, multiple valves should be interlinked with each other easily.
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Body: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 20 ms
Nominal width:
1,5 mm
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
Scope of delivery:
Valve incl. interlinking accessories and locking screw (for individual use of the valve).
Advantages:
•the seal and screw included in the delivery, multiple valves should be interlinked with each other easily.
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Properties
| Control voltage | 230 V AC |
| function | closed (NC) |
| Thread (3x) | G 1/8" |
| Thread exhaust air (1x) | M 5 |
| Operating pressure [bar] | 0 - 8 |
| flow [l/min] | 75 |
| Power consumption (AC) [VA] | 4,1 |
| Spare solenoid coil | MAG M 230V |
Further information on YSV311DPSC-A2
| Weight | 180 g / pcs |
| GTIN | 4050571808440 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | YPC |
Documents
- Catalogue page Atlas 9 (Page 729) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
