Item group
3/2-way solenoid valves G 1/8", Series YSV300
Materials:
Body: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 20 ms
Nominal width:
1,5 mm
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
Scope of delivery:
Valve incl. interlinking accessories and locking screw (for individual use of the valve).
Advantages:
•the seal and screw included in the delivery, multiple valves should be interlinked with each other easily.
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Documents:
More information
Filter items
more filters
3/2-way solenoid valves G 1/8", Series YSV300:
10 of 10 articles

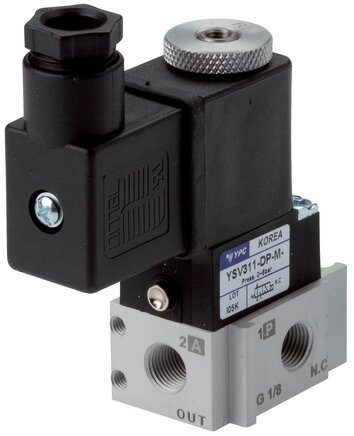

YSV311 DPSC-D4
3/2-way solenoid valve, G 1/8", closed (NC), 24 V DC
€46.78
incl. VAT
YSV311 DPSC-A2
3/2-way solenoid valve, G 1/8", closed (NC), 230 V AC
€46.78
incl. VAT
YSV311 DPSC-D2
3/2-way solenoid valve, G 1/8", closed (NC), 12 V DC
€46.78
incl. VAT
YSV311 DPSC-A4
3/2-way solenoid valve, G 1/8", closed (NC), 24 V AC
€46.78
incl. VAT
YSV311 DPSC-A1
3/2-way solenoid valve, G 1/8", closed (NC), 115 V AC
€46.78
incl. VAT
YSV321 DPSC-D4
3/2-way solenoid valve, G 1/8", open (NO), 24 V DC
€46.78
incl. VAT
YSV321 DPSC-A2
3/2-way solenoid valve, G 1/8", open (NO), 230 V AC
€46.78
incl. VAT
YSV321 DPSC-D2
3/2-way solenoid valve, G 1/8", open (NO), 12 V DC
€46.78
incl. VAT
YSV321 DPSC-A4
3/2-way solenoid valve, G 1/8", open (NO), 24 V AC
€46.78
incl. VAT
YSV321 DPSC-A1
3/2-way solenoid valve, G 1/8", open (NO), 115 V AC
€46.78
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
