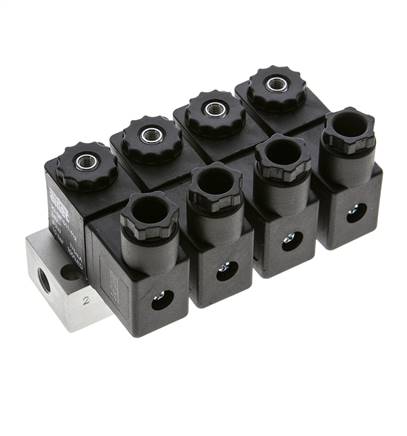

3/2-way solenoid valve, G 1/8", closed (NC), 4-way, 24 V DC
Item number:
MS 18310/4HN24V=
Item description
Materials:
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Structural shape solenoid coil:
N (plug size 1) (M 5: O, plug size 0)
Pressure input:
both sides on row plate (G 1/8")
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Structural shape solenoid coil:
N (plug size 1) (M 5: O, plug size 0)
Pressure input:
both sides on row plate (G 1/8")
Properties
| Number of valves [PCE] | 4 |
| Control voltage | 24 V DC |
| Thread | G 1/8" |
| Thread exhaust air | 4x M 5 |
| Manual emergency stop | yes |
| Nominal width [mm] | 1,4 |
| flow [l/min] | 56 |
| Power consumption (DC) [W] | 4,2 |
| Spare solenoid coil | MAG N 24V= |
Further information on MS18310/4HN24V=
| Weight | 550 g / pcs |
| GTIN | 4050571499013 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
Documents
- Catalogue page Atlas 9 (Page 750) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
