Item group

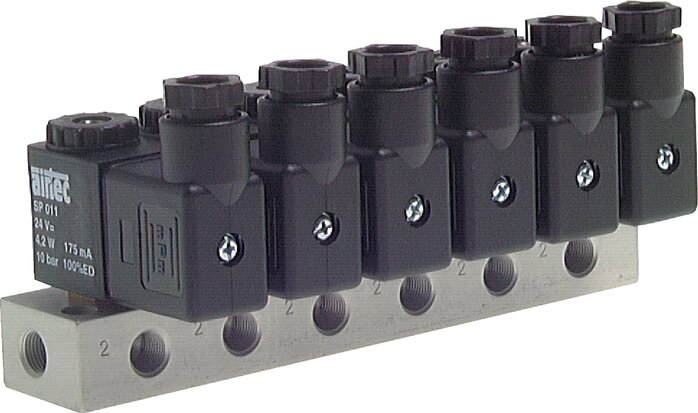

3/2-way solenoid valves with manifold block, Series MS
Materials:
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Structural shape solenoid coil:
N (plug size 1) (M 5: O, plug size 0)
Pressure input:
both sides on row plate (G 1/8")
Documents:
More information
Filter items
more filters
3/2-way solenoid valves with manifold block, Series MS:
20 of 21 articles
MS 20310/2HN24V=
3/2-way solenoid valve, M 5, closed (NC), 2-way, 24 V DC
€93.57
incl. VAT
MS 20310/2HN12V=
3/2-way solenoid valve, M 5, closed (NC), 2-way, 12 V DC
€93.57
incl. VAT
Not in stock
MS 20310/3HN24V=
3/2-way solenoid valve, M 5, closed (NC), 3-way, 24 V DC
€128.14
incl. VAT
MS 20310/3HN12V=
3/2-way solenoid valve, M 5, closed (NC), 3-way, 12 V DC
€128.14
incl. VAT
MS 20310/4HN24V=
3/2-way solenoid valve, M 5, closed (NC), 4-way, 24 V DC
€165.29
incl. VAT
MS 20310/4HN12V=
3/2-way solenoid valve, M 5, closed (NC), 4-way, 12 V DC
€165.29
incl. VAT
MS 20310/5HN24V=
3/2-way solenoid valve, M 5, closed (NC), 5-way, 24 V DC
€199.47
incl. VAT
MS 20310/5HN12V=
3/2-way solenoid valve, M 5, closed (NC), 5-way, 12 V DC
€199.47
incl. VAT
deliverable again in ⌀ 9 weeks
MS 20310/6HN24V=
3/2-way solenoid valve, M 5, closed (NC), 6-way, 24 V DC
€234.50
incl. VAT
MS 20310/6HN12V=
3/2-way solenoid valve, M 5, closed (NC), 6-way, 12 V DC
€234.50
incl. VAT
deliverable again in ⌀ 12 days
MS 18310/2HN24V=
3/2-way solenoid valve, G 1/8", closed (NC), 2-way, 24 V DC
€74.03
incl. VAT
MS 18310/2HN230V
3/2-way solenoid valve, G 1/8", closed (NC), 2-way, 230 V AC
€74.03
incl. VAT
MS 18310/3HN24V=
3/2-way solenoid valve, G 1/8", closed (NC), 3-way, 24 V DC
€101.84
incl. VAT
MS 18310/3HN230V
3/2-way solenoid valve, G 1/8", closed (NC), 3-way, 230 V AC
€101.84
incl. VAT
MS 18310/4HN24V=
3/2-way solenoid valve, G 1/8", closed (NC), 4-way, 24 V DC
€129.72
incl. VAT
MS 18310/4HN230V
3/2-way solenoid valve, G 1/8", closed (NC), 4-way, 230 V AC
€129.72
incl. VAT
MS 18310/5HN24V=
3/2-way solenoid valve, G 1/8", closed (NC), 5-way, 24 V DC
€158.17
incl. VAT
MS 18310/5HN230V
3/2-way solenoid valve, G 1/8", closed (NC), 5-way, 230 V AC
€158.17
incl. VAT
MS 18310/6HN24V=
3/2-way solenoid valve, G 1/8", closed (NC), 6-way, 24 V DC
€185.46
incl. VAT
MS 18310/6 230V
3/2-way solenoid valve, G 1/8", closed (NC), 6-way, 230 V AC
€170.17
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
