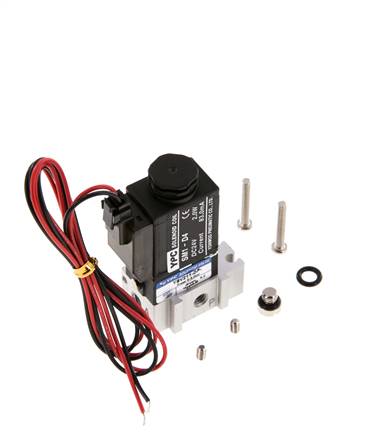

3/2-way solenoid valve, M 5, closed (NC), 24 V DC
Item number:
YSV211 DPSM-D4
Item description
Materials:
Body: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 20 ms
Nominal width:
1,1 mm
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (with rectangular plug SY100: IP 40)
Structural shape solenoid coil:
L
Scope of delivery:
Valve incl. interlinking accessories and locking screw (for individual use of the valve).
Advantages:
•the seal and screw included in the delivery, multiple valves should be interlinked with each other easily.
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Body: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
< 20 ms
Nominal width:
1,1 mm
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65 (with rectangular plug SY100: IP 40)
Structural shape solenoid coil:
L
Scope of delivery:
Valve incl. interlinking accessories and locking screw (for individual use of the valve).
Advantages:
•the seal and screw included in the delivery, multiple valves should be interlinked with each other easily.
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Properties
| Control voltage | 24 V DC |
| Version | 2-pin plug with LED and protection circuit, including 600 mm cable |
| function | closed (NC) |
| Thread (3x) | M 5 |
| Operating pressure [bar] | 0 - 8 |
| flow [l/min] | 28 |
| Power consumption (DC) [W] | 2 |
| Spare solenoid coil | MAG L 24V= 2 |
Further information on YSV211DPSM-D4
| Weight | 80 g / pcs |
| GTIN | 4050571808365 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | YPC |
Documents
- Catalogue page Atlas 9 (Page 729) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
