Item group

3/2-way solenoid valves M5 , Series YSV200

Name: 3/2-way solenoid valve, M 5, closed (NC), 24 V DC of YPC
Brand: YPC
SKU: YSV211 DPSC-D4
Price: 43.99 EUR
Availability: InStock

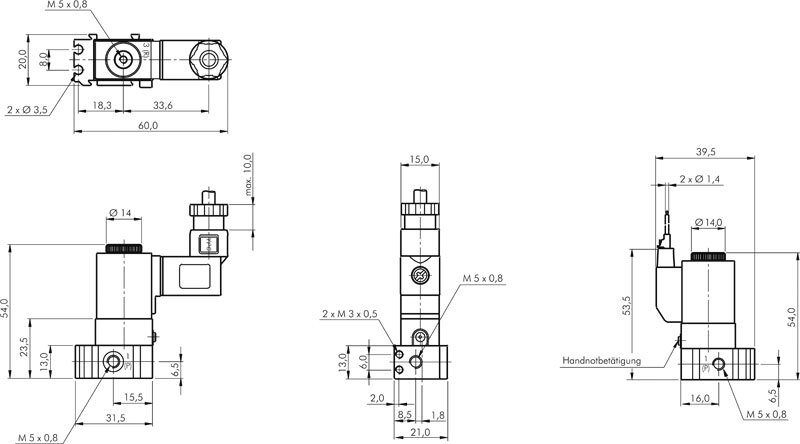

Exemplary representation: 3/2-way solenoid valve with spring return (NC or NO) with standard plug

Exemplary representation: 3/2-way solenoid valve with spring return (NC or NO) with rectangular plug SY100

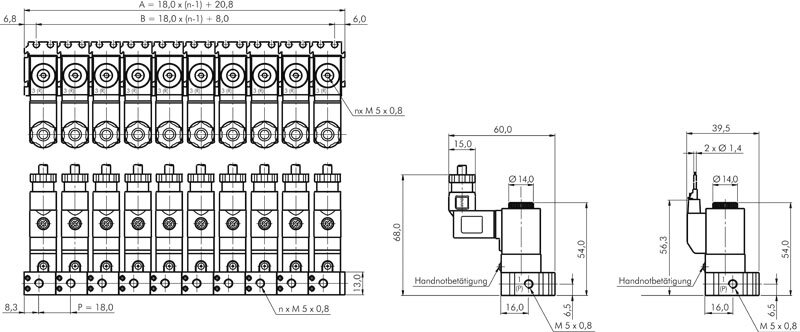

Application examples: Interlinked valves

Schematic symbol: 3/2-way solenoid valve, closed when de-energised (NC)

Schematic symbol: 3/2-way solenoid valve, open when de-energised (NO)

Materials:

Body: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)

Temperature range:

-10°C to +60°C

Media:

oiled and unoiled filtered compressed air

Switching time (at 5 bar):

< 20 ms

Nominal width:

1,1 mm

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Protection class:

IP 65 (with rectangular plug SY100: IP 40)

Structural shape solenoid coil:

Scope of delivery:

Valve incl. interlinking accessories and locking screw (for individual use of the valve).

Advantages:

•the seal and screw included in the delivery, multiple valves should be interlinked with each other easily.

Information:

These valves are always supplied with a solenoid coil and a connector plug.

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 729) atlas9_seiten/729.pdf
Directional valves - Overview, function and explanation of 3/2-way valves

3/2-way solenoid valves M5 , Series YSV200:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

YSV211 DPSC-D4

3/2-way solenoid valve, M 5, closed (NC), 24 V DC

43,99€ incl. VAT

Control voltage	Version	function	Thread (3x)
24 V DC	Standard plug (size 0)	closed (NC)	M 5

YSV211 DPSC-A2

3/2-way solenoid valve, M 5, closed (NC), 230 V AC

43,99€ incl. VAT

Control voltage	Version	function	Thread (3x)
230 V AC	Standard plug (size 0)	closed (NC)	M 5

YSV211 DPSC-D2

3/2-way solenoid valve, M 5, closed (NC), 12 V DC

43,99€ incl. VAT

Control voltage	Version	function	Thread (3x)
12 V DC	Standard plug (size 0)	closed (NC)	M 5

YSV211 DPSC-A4

3/2-way solenoid valve, M 5, closed (NC), 24 V AC

43,99€ incl. VAT

Control voltage	Version	function	Thread (3x)
24 V AC	Standard plug (size 0)	closed (NC)	M 5

YSV211 DPSC-A1

3/2-way solenoid valve, M 5, closed (NC), 115 V AC

43,99€ incl. VAT

Control voltage	Version	function	Thread (3x)
115 V AC	Standard plug (size 0)	closed (NC)	M 5

YSV221 DPSC-D4

3/2-way solenoid valve, M 5, open (NO), 24 V DC

43,99€ incl. VAT

Control voltage	Version	function	Thread (3x)
24 V DC	Standard plug (size 0)	open (NO)	M 5

YSV221 DPSC-A2

3/2-way solenoid valve, M 5, open (NO), 230 V AC

43,99€ incl. VAT

Control voltage	Version	function	Thread (3x)
230 V AC	Standard plug (size 0)	open (NO)	M 5

YSV221 DPSC-D2

3/2-way solenoid valve, M 5, open (NO), 12 V DC

43,99€ incl. VAT

Control voltage	Version	function	Thread (3x)
12 V DC	Standard plug (size 0)	open (NO)	M 5

YSV221 DPSC-A4

3/2-way solenoid valve, M 5, open (NO), 24 V AC

43,99€ incl. VAT

Control voltage	Version	function	Thread (3x)
24 V AC	Standard plug (size 0)	open (NO)	M 5

YSV221 DPSC-A1

3/2-way solenoid valve, M 5, open (NO), 115 V AC

43,99€ incl. VAT

Control voltage	Version	function	Thread (3x)
115 V AC	Standard plug (size 0)	open (NO)	M 5

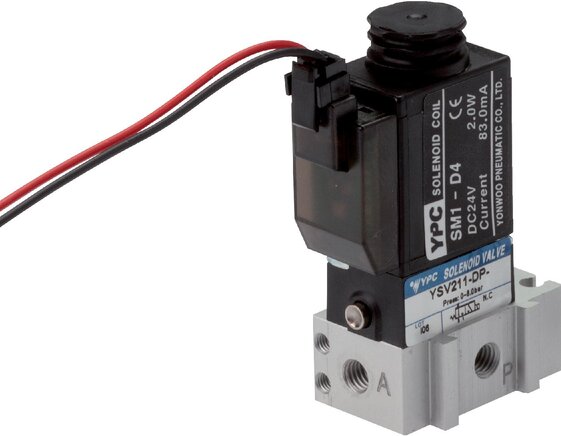

YSV211 DPSM-D4

3/2-way solenoid valve, M 5, closed (NC), 24 V DC

52,25€ incl. VAT

Control voltage	function	Thread (3x)	Operating pressure [bar]
24 V DC	closed (NC)	M 5	0 - 8

Version

2-pin plug with LED and protection circuit, including 600 mm cable

YSV221-DPSM-D4

3/2-way solenoid valve, M 5, open (NO), 24 V DC

52,25€ incl. VAT

Control voltage	function	Thread (3x)	Operating pressure [bar]
24 V DC	open (NO)	M 5	0 - 8

Version

2-pin plug with LED and protection circuit, including 600 mm cable
