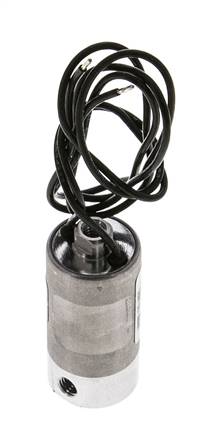

Item description
Materials:
Body: 1.4104, spring: 1.4310, seal: FKM
Temperature range:
0 to +60 °C
Operating pressure:
-0,9 to 7 bar
Flow:
30 l/min
Media:
oiled and unlubricated, filtered compressed air, non-explosive neutral gases, vacuum
Installation position:
arbitrary
Control voltages:
24 V DC, 12 V DC
Voltage tolerance:
± 10 %
Protection class:
IP 40
Scope of delivery:
This valve is supplied with a 300 mm long cable (Flat pins for circuit-board assembly are also available if requested).
Note:
Connection 1 is marked by a notch on the underside of the valve.
Body: 1.4104, spring: 1.4310, seal: FKM
Temperature range:
0 to +60 °C
Operating pressure:
-0,9 to 7 bar
Flow:
30 l/min
Media:
oiled and unlubricated, filtered compressed air, non-explosive neutral gases, vacuum
Installation position:
arbitrary
Control voltages:
24 V DC, 12 V DC
Voltage tolerance:
± 10 %
Protection class:
IP 40
Scope of delivery:
This valve is supplied with a 300 mm long cable (Flat pins for circuit-board assembly are also available if requested).
Note:
Connection 1 is marked by a notch on the underside of the valve.
Properties
| Version | 3/2-way solenoid valve |
| Control voltage | 24 V DC |
| function | normally closed (NC) |
| Thread (2x) | M 5 |
| Thread (exhaust air) | M 5 |
| DN [mm] | 0,75 |
| Power consumption (DC) [W] | 1,5 |
Further information on M3M5ES24V=
| Weight | 70 g / pcs |
| GTIN | 4050571478766 |
| Customs duty number | 84812090 |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 716) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
