Item group

2/2-way & 3/2-directional miniature valves M 5

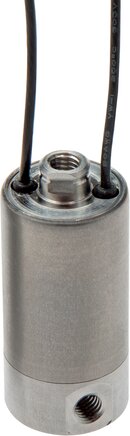

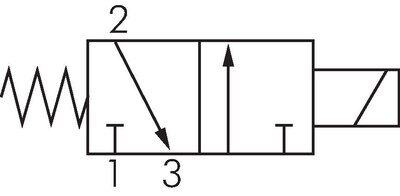

Exemplary representation: 2/2-way solenoid valve, closed when de-energised (NC) Exemplary representation: 3/2-way solenoid valve, closed when de-energised (NC) Schematic symbol: 2/2-way solenoid valve, closed when de-energised (NC) Schematic symbol: 3/2-way solenoid valve, closed when de-energised (NC)

Materials:

Body: 1.4104, spring: 1.4310, seal: FKM

Temperature range:

0°C to +60°C

Operating pressure:

-0,9 to 7 bar

Flow:

30 l/min

Media:

oiled and unlubricated, filtered compressed air, non-explosive neutral gases, vacuum

Installation position:

arbitrary

Control voltages:

24 V DC, 12 V DC

Voltage tolerance:

± 10 %

Protection class:

IP 40

Scope of delivery:

This valve is supplied with a 300 mm long cable (Flat pins for circuit-board assembly are also available if requested).

Note:

Connection 1 is marked by a notch on the underside of the valve.

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 716) atlas9_seiten/716.pdf

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
2/2-way & 3/2-directional miniature valves M 5:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
197,64€ incl. VAT
197,64€ incl. VAT
197,64€ incl. VAT
197,64€ incl. VAT
{{ $t('shop.all.unverbindliche_richtwerte') }}
