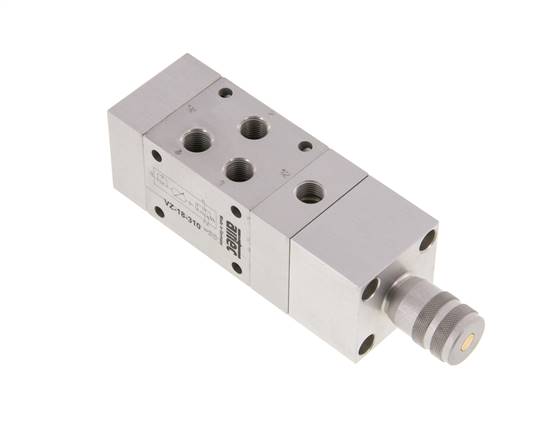

Item description
Materials:
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: plastic and NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Function:
This valve has delayed operation. It can be used in the idle position closed or idle position open modes. Pressure connection at 1 provides the function "idle position closed", pressure connection at 3 the function "idle position open". In the idle position, flow is from 3 to 2, connection 1 is blocked. A signal arriving at 12, after the time that has been set has elapsed, switches the valve to flow from 1 to 2, 3 is blocked. When the signal goes off, a spring immediately resets the piston.
Connecting the signal conductor 12 to 1 or 3 is possible. Care must be taken here that the signal conductor to the valve connection 1 or 3 is not longer than the signal conductor to 12.
Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: plastic and NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Function:
This valve has delayed operation. It can be used in the idle position closed or idle position open modes. Pressure connection at 1 provides the function "idle position closed", pressure connection at 3 the function "idle position open". In the idle position, flow is from 3 to 2, connection 1 is blocked. A signal arriving at 12, after the time that has been set has elapsed, switches the valve to flow from 1 to 2, 3 is blocked. When the signal goes off, a spring immediately resets the piston.
Connecting the signal conductor 12 to 1 or 3 is possible. Care must be taken here that the signal conductor to the valve connection 1 or 3 is not longer than the signal conductor to 12.
Properties
| Thread (2x) | G 1/8" |
| Thread exhaust air (1x) | G 1/8" |
| Thread control connection (1x) | G 1/8" |
| flow [l/min] | 600 |
| Operating pressure [bar] | 3 - 10 |
| Time range [s] | 1 - 20 |
Further information on VZ18310/20
| Weight | 350 g / pcs |
| GTIN | 4050571730079 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
Documents
- Catalogue page Atlas 9 (Page 781) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
