Item group

3/2-way time valves (precision), TIMER

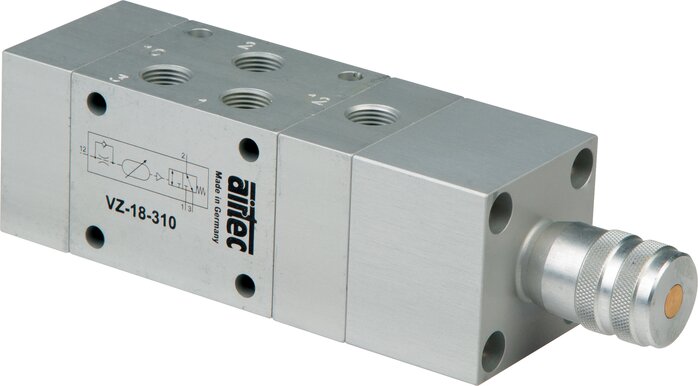

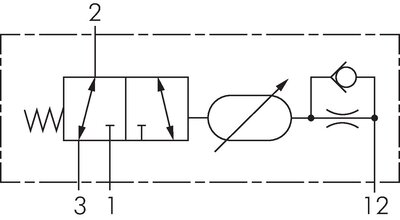

Exemplary representation: 3/2-way timer valve Schematic symbol: 3/2-way timer valve (NC/NO)

Materials:

Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: plastic and NBR

Temperature range:

-10°C to +70°C

Media:

oiled and unoiled filtered compressed air

Pressure input:

Possible on every connection

Function:

This valve has delayed operation. It can be used in the idle position closed or idle position open modes. Pressure connection at 1 provides the function "idle position closed", pressure connection at 3 the function "idle position open". In the idle position, flow is from 3 to 2, connection 1 is blocked. A signal arriving at 12, after the time that has been set has elapsed, switches the valve to flow from 1 to 2, 3 is blocked. When the signal goes off, a spring immediately resets the piston.

Connecting the signal conductor 12 to 1 or 3 is possible. Care must be taken here that the signal conductor to the valve connection 1 or 3 is not longer than the signal conductor to 12.

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 781) atlas9_seiten/781.pdf
    Documentation doku/vz310.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
3/2-way time valves (precision), TIMER:
