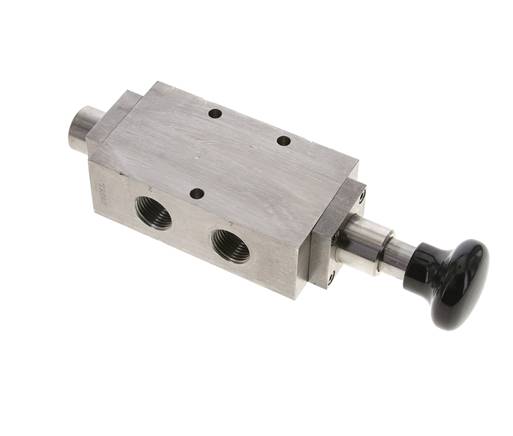

5/2-way Button actuated valve, G 1/2", spring return
Item number:
T 22511 ESG
Item description
Materials:
Body and slider: 1.4436, seals: FKM
Temperature range:
-20 to +180 °C
Operating pressure:
-0,95 to 12 bar
Media:
lubricated and unlubricated compressed air, non-toxic gases (50 µm)
Pressure input:
Possible on every connection
Switch panel mounting:
Two nuts for the panel mounting are included in the scope of delivery (hole diameter: 24 mm, max. sheet metal thickness: 5 mm)
Body and slider: 1.4436, seals: FKM
Temperature range:
-20 to +180 °C
Operating pressure:
-0,95 to 12 bar
Media:
lubricated and unlubricated compressed air, non-toxic gases (50 µm)
Pressure input:
Possible on every connection
Switch panel mounting:
Two nuts for the panel mounting are included in the scope of delivery (hole diameter: 24 mm, max. sheet metal thickness: 5 mm)
Properties
| Switching | 5/2-way |
| function | spring return |
| Thread | G 1/2" |
| Thread exhaust air | 2x G 1/2" |
| Actuating force at 10 bar [N] | 112 |
| flow [l/min] | 3500 |
Further information on T22511ESG
| Weight | 2,1 kg / pcs |
| GTIN | 4050571685010 |
| Customs duty number | 84812090 |
Documents
- Catalogue page Atlas 9 (Page 784) (PDF)
- Data sheet (Print view)
*housing ventilation: G 1/8"
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
