3/2-way & 5/2-way-button actuated valves made of stainless steel

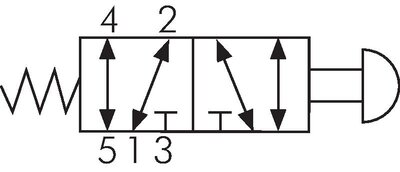

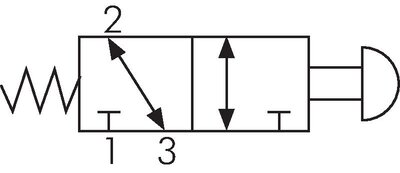

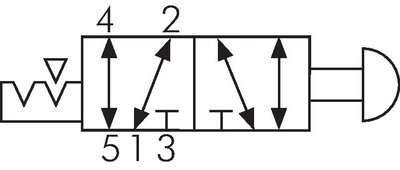

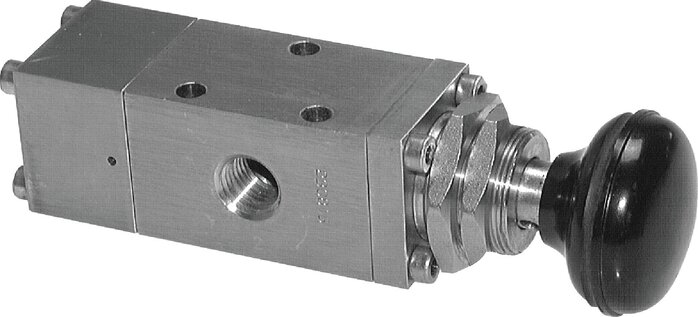

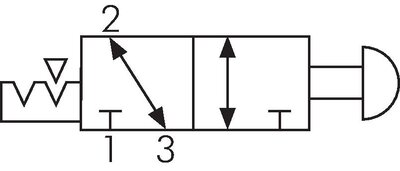

Exemplary representation: 3/2-way pushbutton valve of stainless steel Schematic symbol: 3/2-way pushbutton valve with spring return Schematic symbol: 3/2-way pushbutton valve with detent Schematic symbol: 5/2-way pushbutton valve with spring return Schematic symbol: 5/2-way pushbutton valve with detent

Materials:

Body and slider: 1.4436, seals: FKM

Temperature range:

-20°C to +180°C

Operating pressure:

-0,95 to 12 bar

Media:

lubricated and unlubricated compressed air, non-toxic gases (50 µm)

Pressure input:

Possible on every connection

Switch panel mounting:

Two nuts for the panel mounting are included in the scope of delivery (hole diameter: 24 mm, max. sheet metal thickness: 5 mm)
*housing ventilation: G 1/8"

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 784) atlas9_seiten/784.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
3/2-way & 5/2-way-button actuated valves made of stainless steel:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
1195,85€ incl. VAT
1090,53€ incl. VAT
833,00€ incl. VAT
