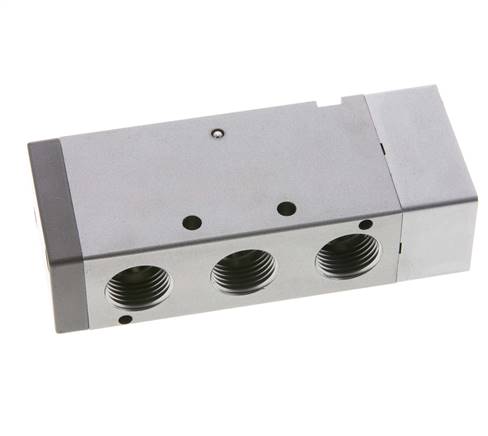

Item description
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5 to +60 °C
Operating pressure:
1,5 to 8 bar
Control pressure:
2 to 8 bar
Media:
oiled and unoiled filtered compressed air
Service life:
min. 40 million switching cycles
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5 to +60 °C
Operating pressure:
1,5 to 8 bar
Control pressure:
2 to 8 bar
Media:
oiled and unoiled filtered compressed air
Service life:
min. 40 million switching cycles
Properties
| Switching | 5/2-way |
| function | spring return* |
| Thread G1 (3x) | G 1/2" |
| Thread exhaust air G2 (2x) | G 1/2" |
| Thread control connection G3 | G 1/8" |
| Nominal width [mm] | 8 |
| flow [l/min] | 2250 |
| A [mm] | 127 |
| B [mm] | 50 |
| C [mm] | 34 |
| D [mm] | 17,5 |
| E [mm] | 43 |
| F [mm] | 28 |
| H1 [mm] | 5,5 |
| H2 [mm] | 4,3 |
| J [mm] | 27 |
| K [mm] | 21 |
| L [mm] | 72 |
| M [mm] | 25,5 |
| N [mm] | 63 |
| O [mm] | 39 |
| P [mm] | 4 |
| S [mm] | 36 |
| T [mm] | 57 |
| W [mm] | 0 |
Further information on RV5241-15A
| Weight | 500 g / pcs |
| GTIN | 4050571716004 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 723) (PDF)
- Data sheet (Print view)
*mechanical spring
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
