Item group
5/2-directional & 5/3-directional pneumatic valves G 1/2", Model series RV40
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5 to +60 °C
Operating pressure:
1,5 to 8 bar
Control pressure:
2 to 8 bar
Media:
oiled and unoiled filtered compressed air
Service life:
min. 40 million switching cycles
*mechanical spring
Documents:
More information
Filter items
more filters
5/2-directional & 5/3-directional pneumatic valves G 1/2", Model series RV40:
5 of 5 articles
RV 5241-15 A

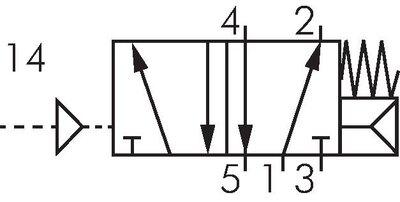

5/2-way pneumatic valve, G 1/2", spring return
€78.46
incl. VAT
RV 5242-15 A
5/2-way pneumatic valve, G 1/2", pulse valve
€112.21
incl. VAT
RV 5342-15C A
5/3-way pneumatic valve, G 1/2", Centre position closed
€159.86
incl. VAT
RV 5342-15E A
5/3-way pneumatic valve, G 1/2", Centre position vented
€175.94
incl. VAT
€175.94
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
