€124.69 incl. VAT
pcs

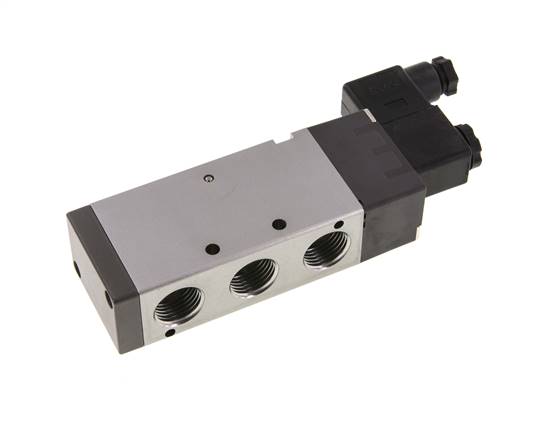

Item description
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide

Temperature range:
-5 to +60 °C

Operating pressure:
1,5 to 8 bar

Media:
oiled and unoiled filtered compressed air

Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Service life:
min. 40 million switching cycles

Structural shape solenoid coil:
T1 (plug size 1)

Information:
The coil and plug are enclosed as loose parts.
Properties
Con­trol volt­age 230 V AC
Switch­ing 5/2-way
func­tion spring re­turn*
Thread G1 (3x) G 1/2"
Thread ex­haust air G2 (2x) G 1/2"
Nom­i­nal width [mm] 8
flow [l/min] 2250
Power con­sump­tion (AC) [VA] 4
Spare so­le­noid coil MAG T1 230V
A [mm] 168,7
B [mm] 50
C [mm] 34
D [mm] 17,5
E [mm] 43,0
F [mm] 28
H1 [mm] 5,5
H2 [mm] 4,3
J [mm] 27
K [mm] 21,0
L [mm] 72
M [mm] 25,5
N [mm] 63
O [mm] 39,0
P [mm] 4
S [mm] 36
T [mm] 57
U [mm] 75
V [mm] 40,5
W [mm] 0
Further information on RV5241-15-230V
Weight 550 g / pcs
GTIN 4050571715977
Customs duty number 84812090
Manufacturer EMC
Documents
*mechanical spring


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
